EtherNet IP Network Adapter

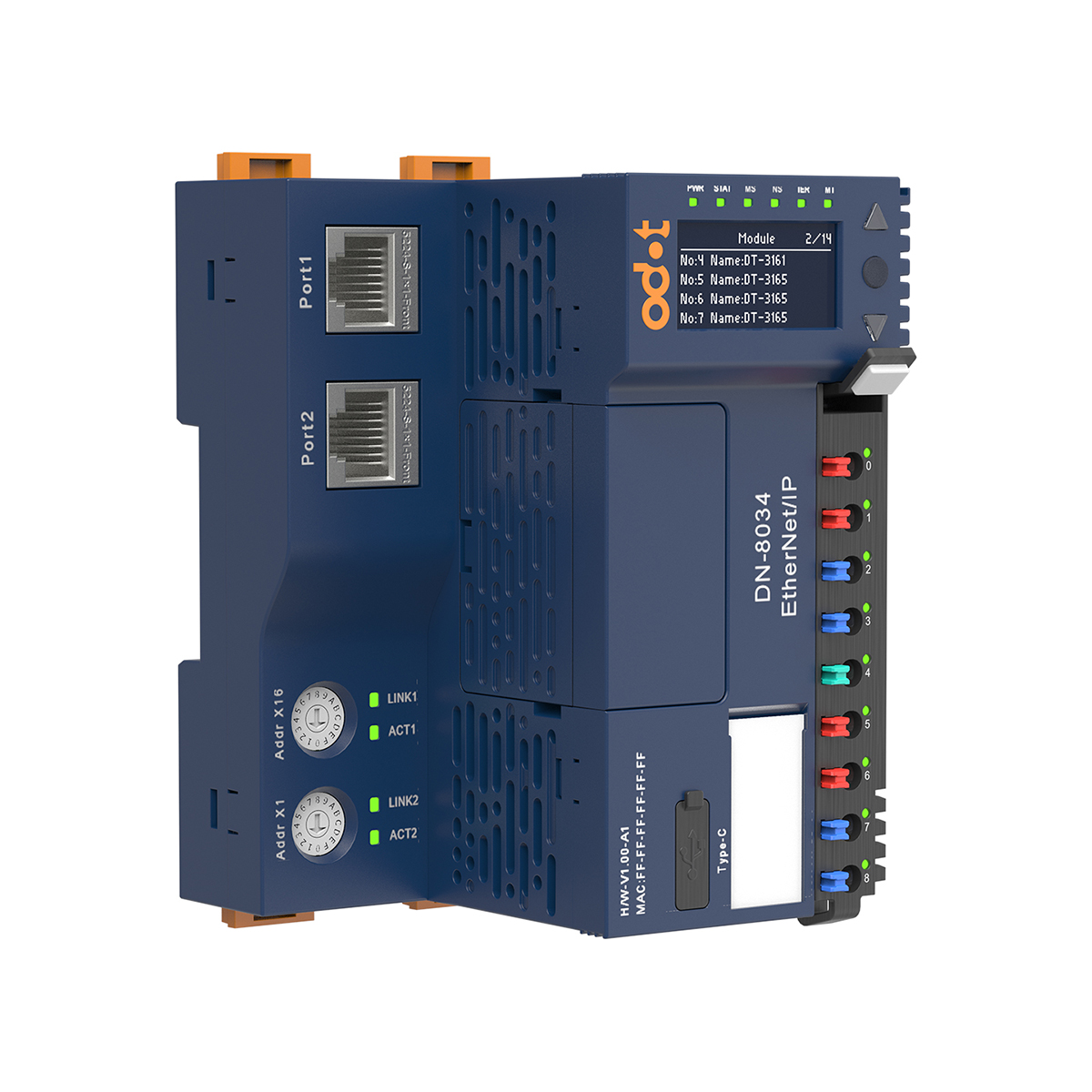

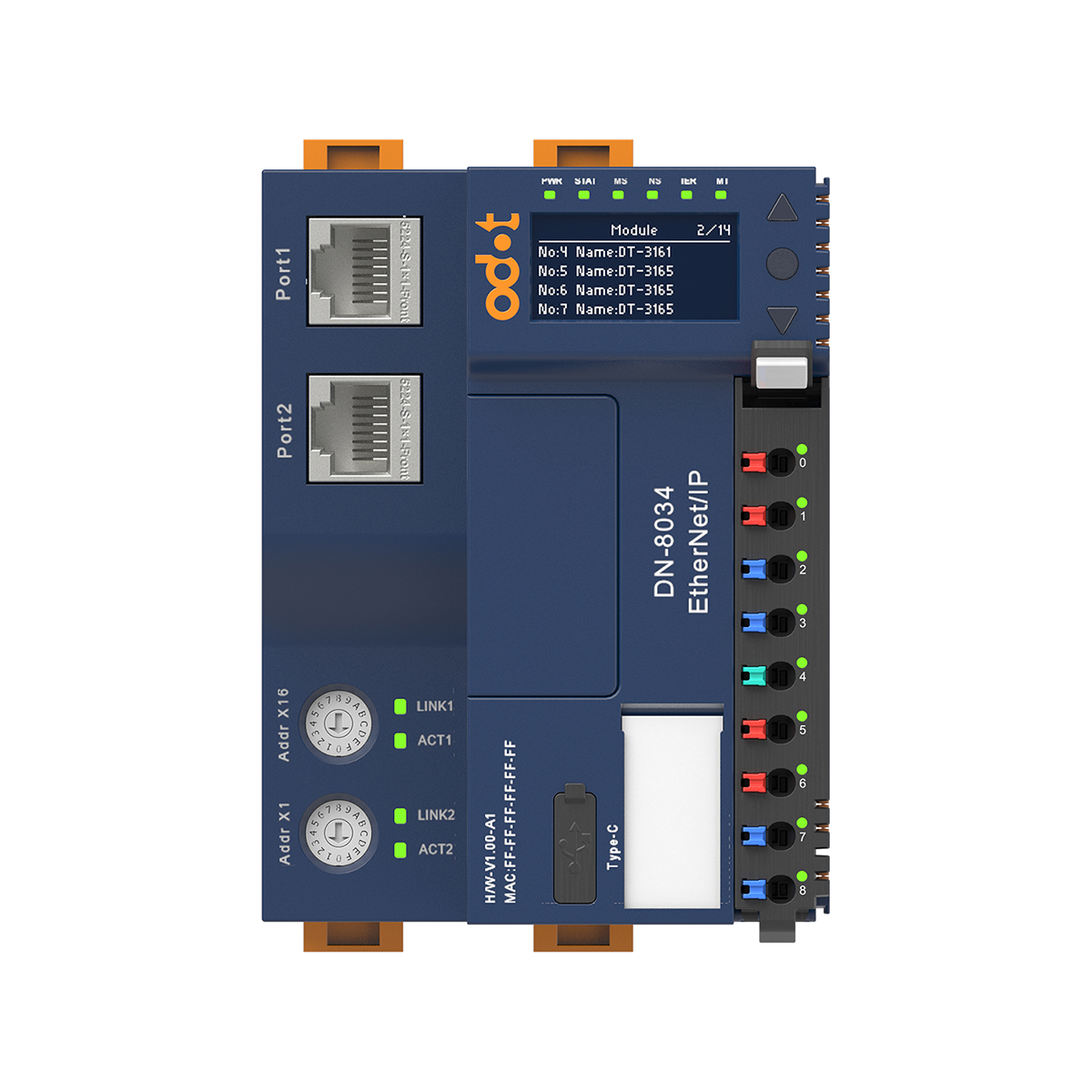

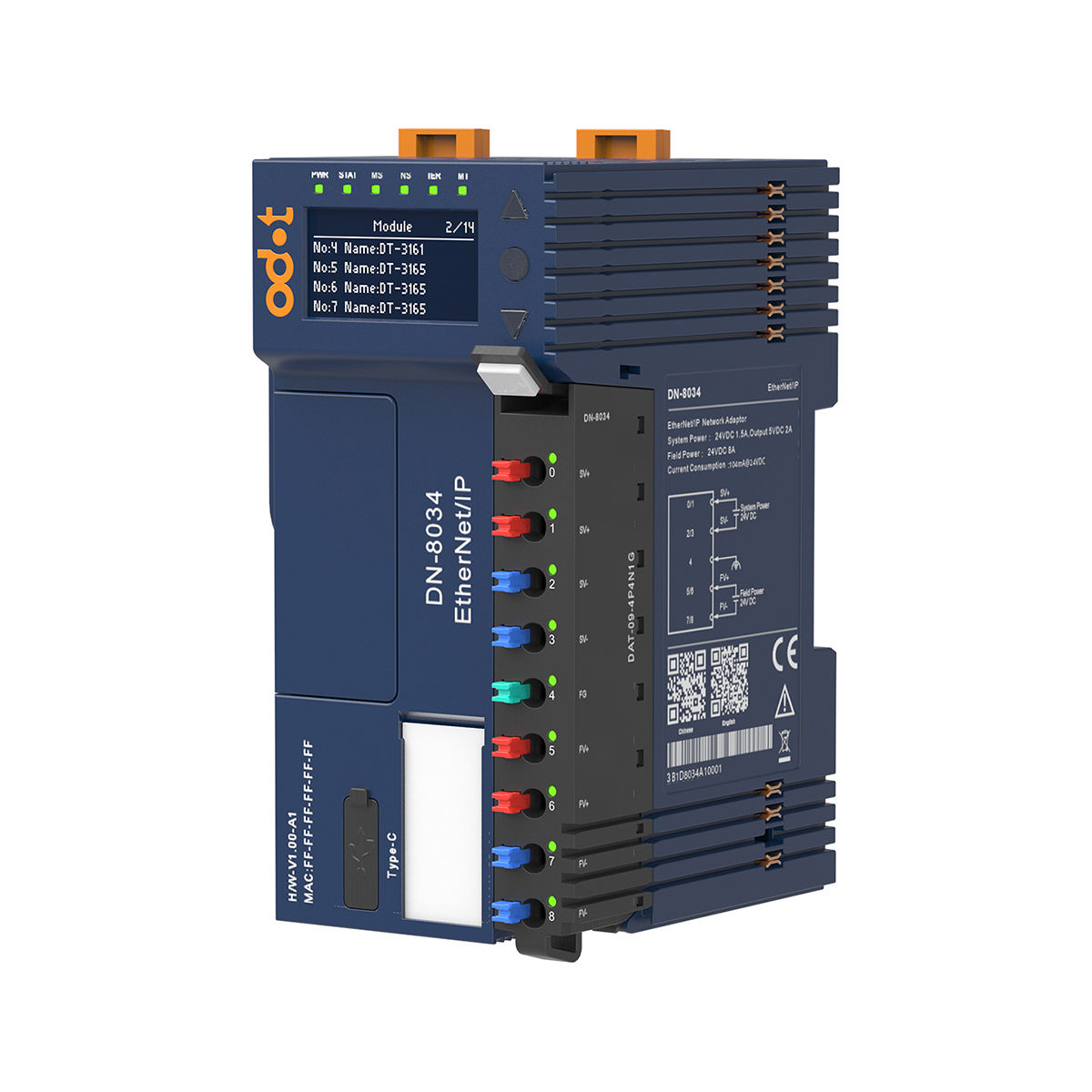

DN-8034 EtherNet/IP Network Adapter Module Features 1、DN-8034 Network adapter supports standard EtherNet/IP protocol, and it supports dual network port switch cascade function. 2、The module supports up to 32 IO modules extension, the maximum input of process data is 1024 bytes and the maximum output is 1024 bytes, flexible  selection of IO modules to be paired with adapter; 3、Module high speed redundant backplane bus, and the refresh cycle of full load is 0.6ms; 4、Module removable installation is more convenient, staggered layout spring light guide terminals, and the terminal is pluggable, it is easy to maintenance and replacement, the wiring diameter is 0.2mm² (AWG 24) ~ 1.5mm² (AWG 16); 5、The internal bus and system power and field power are completely isolated, avoid field equipment signals interfering with module internal communications; 6、The module supports communication diagnostics, extended module diagnostic function, with indicator lights such as operating status and co…
