Metal Tube Flowmeter

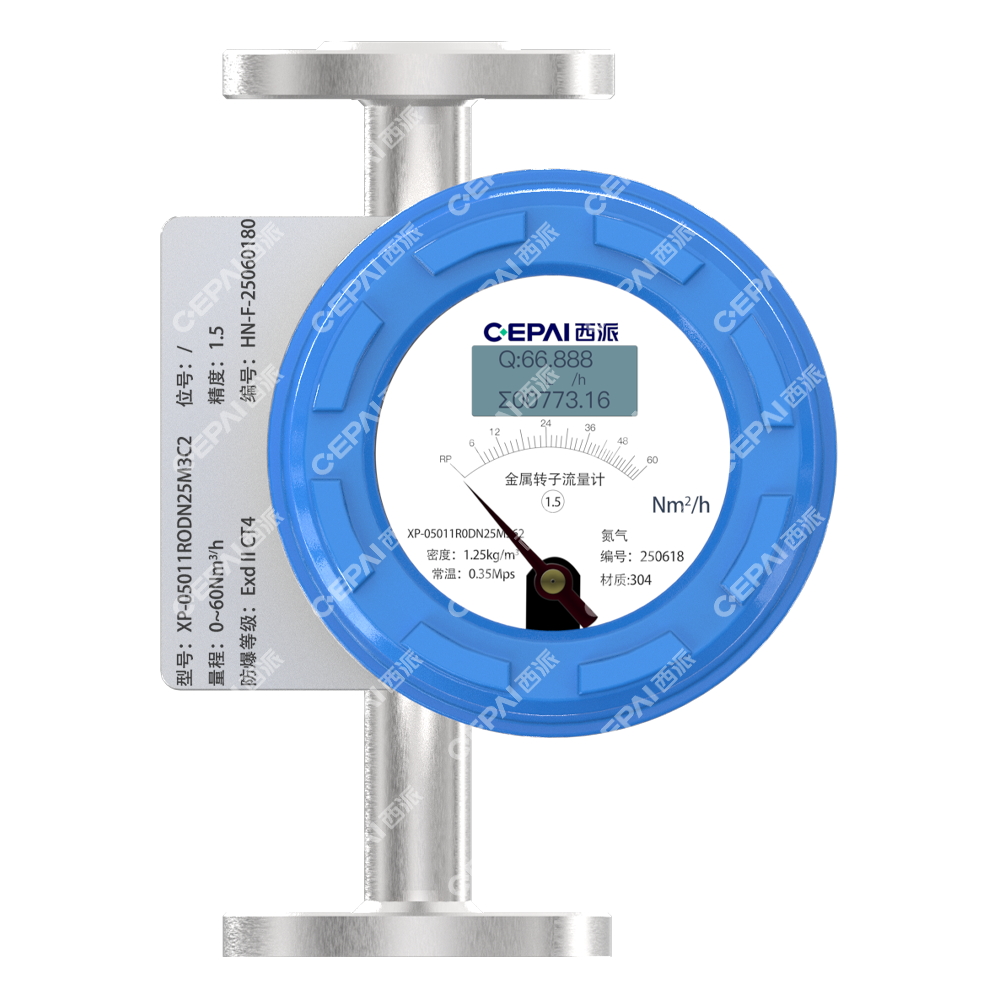

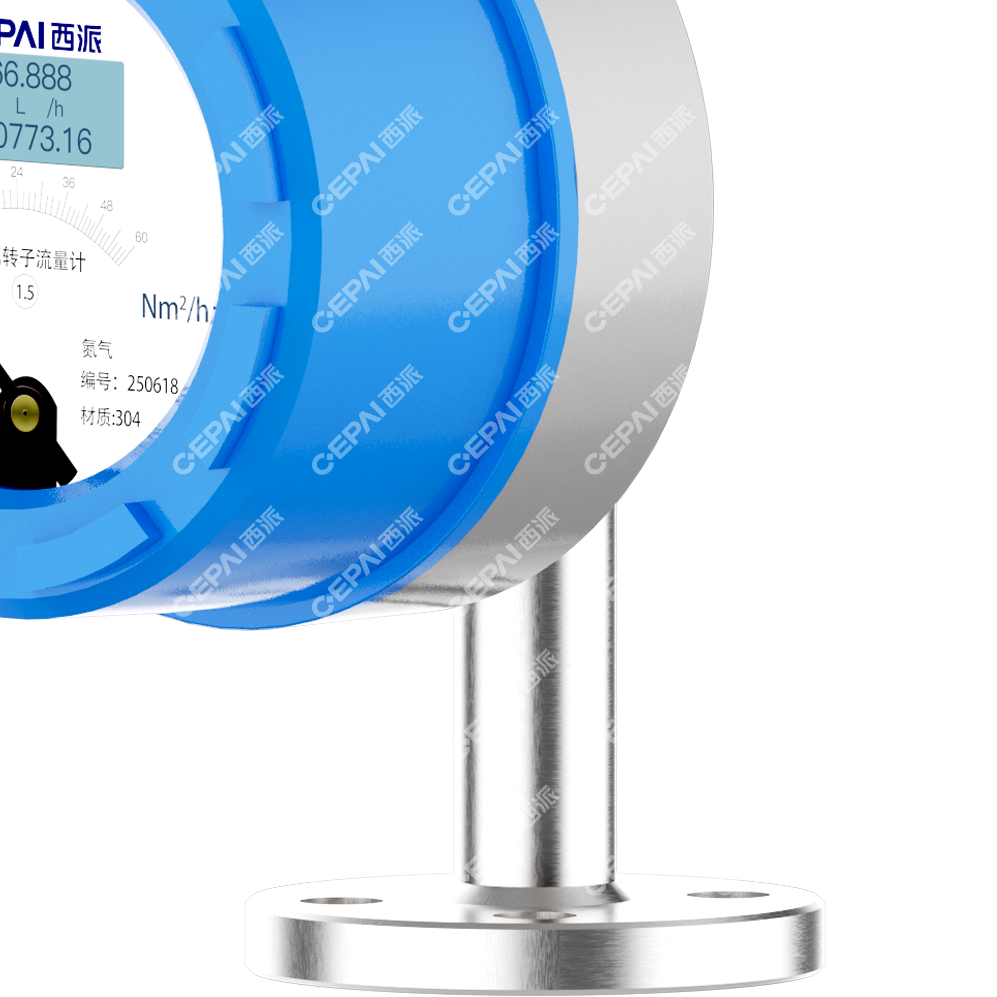

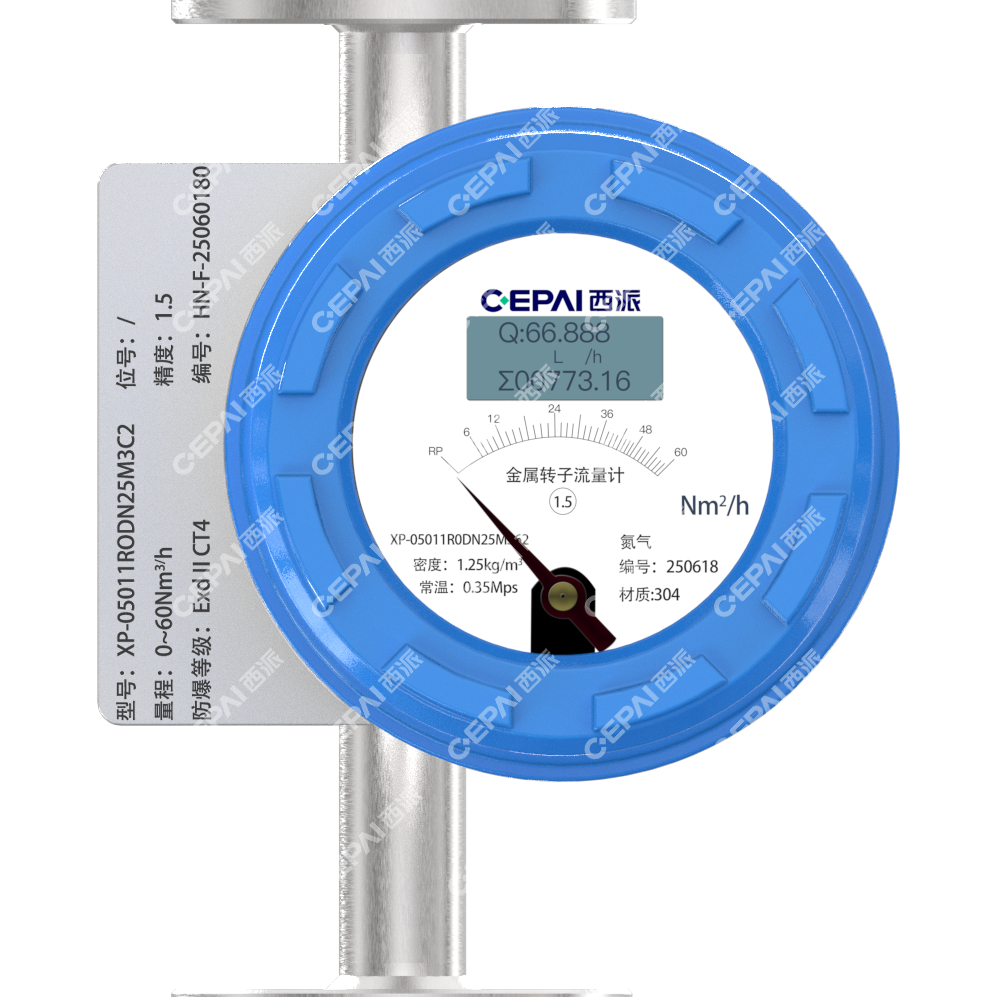

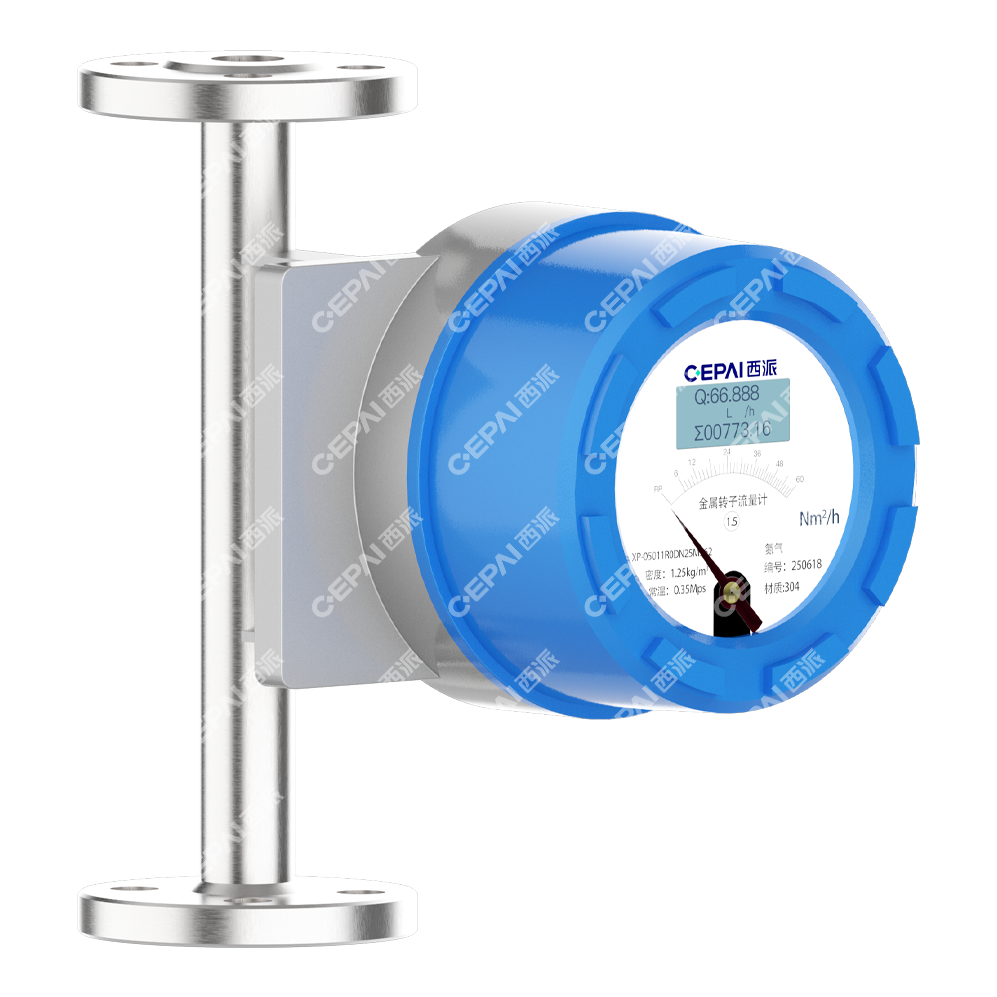

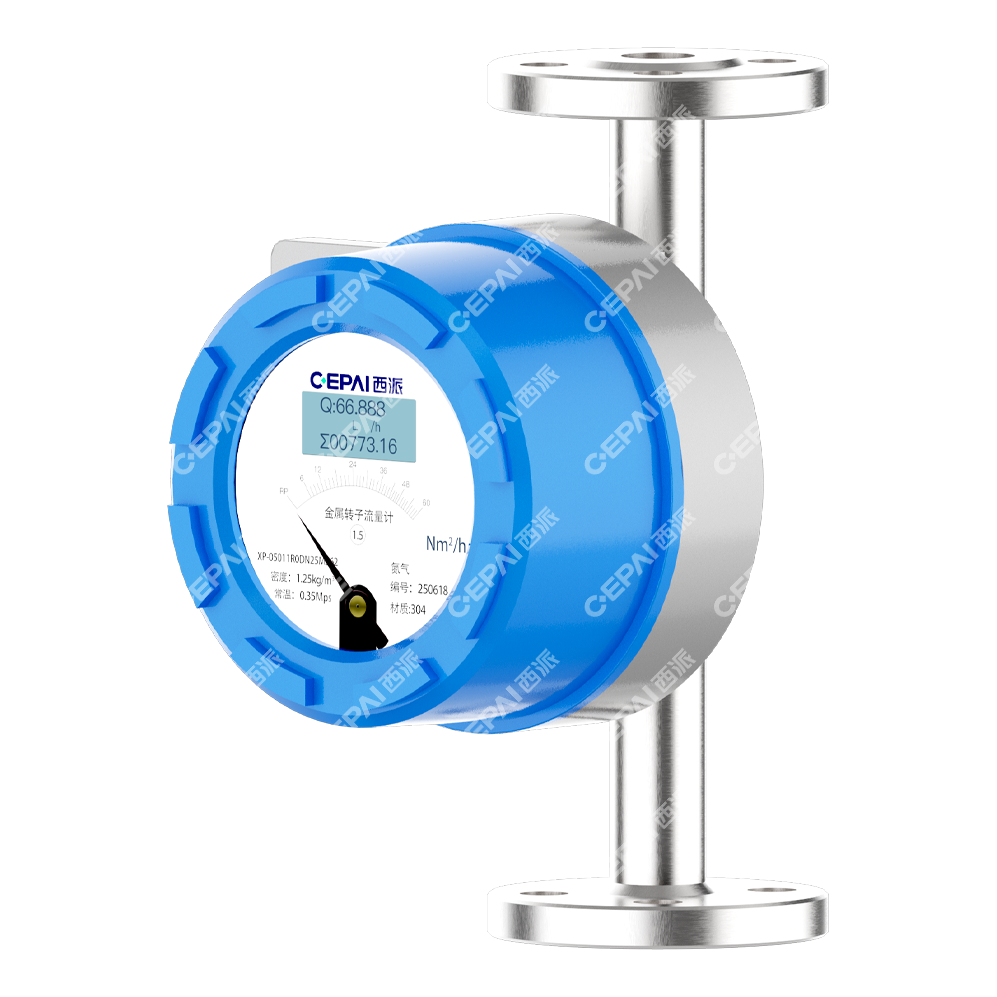

Metal Tube Flowmeter CEPAI metal tube rotameter is an all-metal variable-area flowmeter for liquids, gases and steam, ideal for low-flow & low-velocity working conditions with flexible customizable connections, wetted materials, indicators, power supplies, signal outputs and explosion-proof structures for petroleum, chemical, power, metallurgy, water treatment, food, pharmaceutical and general industries; it works based on variable-area theory: fluid pushes the float inside the tapered tube to balance gravity, buoyancy and fluid force, and the float’s built-in magnet transmits position signals to the indicator via non-contact magnetic coupling for local readout or optional 4-20mA, HART, RS485/Modbus and limit alarm signals, featuring low straight pipe requirements, high temperature/high pressure/corrosion resistance, 10:1 standard turndown ratio (optional 20:1), mechanical dial or backlit dual-line LCD showing instantaneous & total flow, multiple power supply modes, data…
