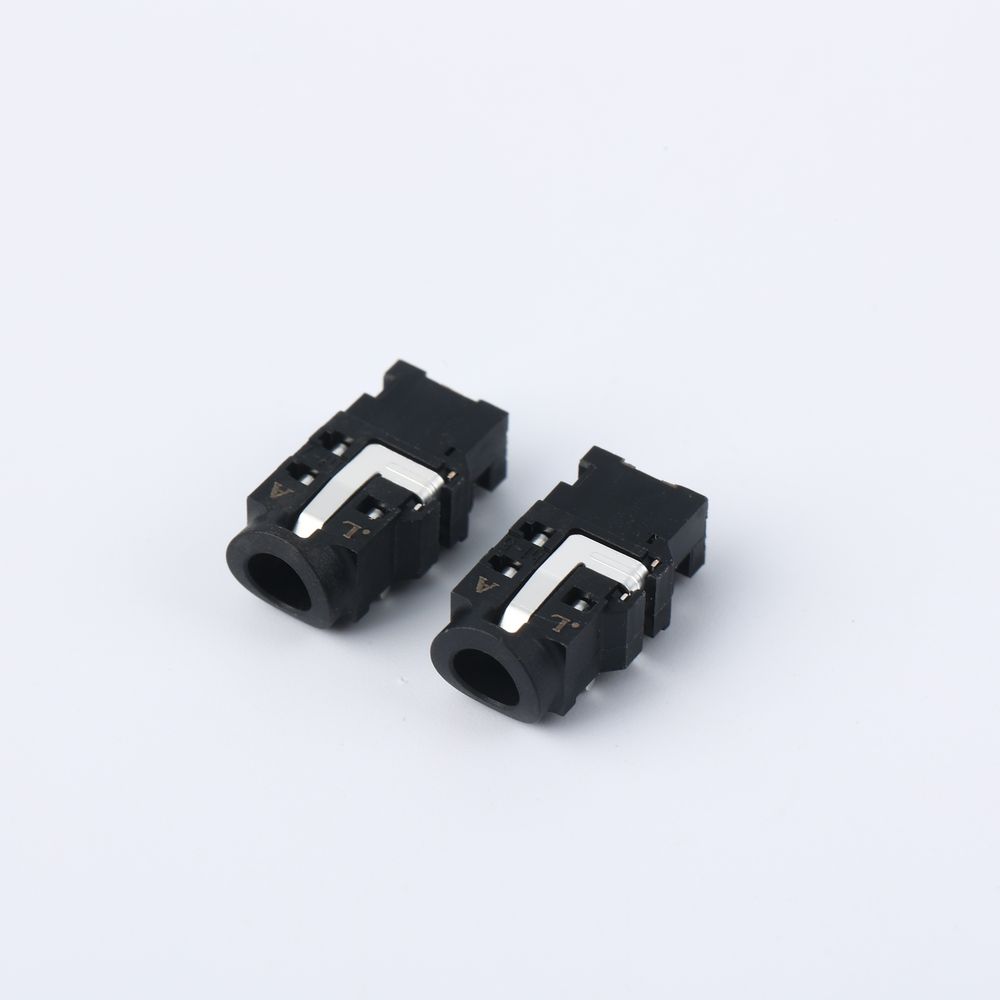

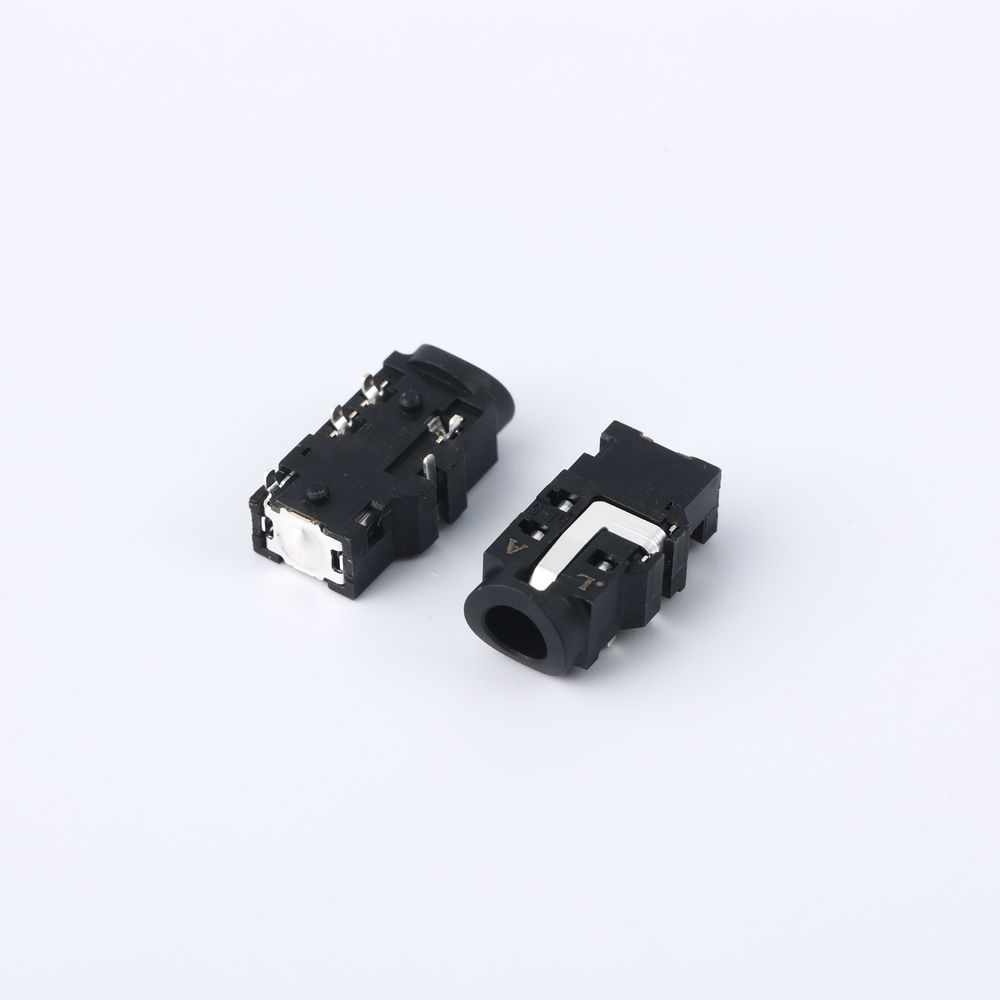

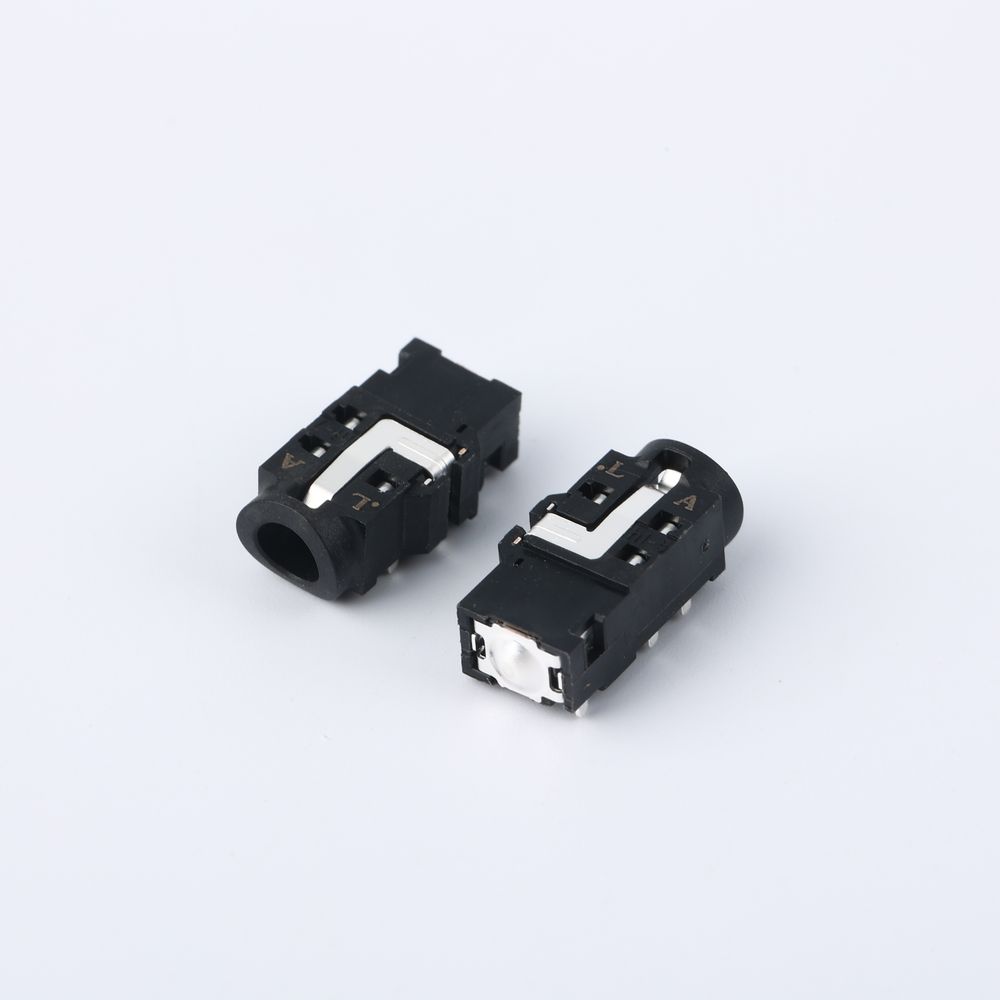

Audio Jack Connector 3.5mm DIP

3.5 mm jack round beveled socket full DIP pins are an audio jack connector specifically designed for high-reliability industrial scenarios. Their core advantages lie in mechanical stability, ease of maintenance, and environmental adaptability.    CURUENT RATING: 1 AMP VOLTAGE RATING: 12VAC RMS CONTACT RESISTANCE: 50mΩ MAX INITIAL, 100mΩ MIN AFTER LIFE TEST INSULATION RESISTANCE: 100mΩ MIN, 500V DC INITIAL, 50mΩ MIN, 500VDC AFTER HUMIDITY TEST DIELECTRIC WITHSTANDING VOLTAGE: 500V AC RMS 50(60) HZ 1 MINUTE INSERTION FORCE : 0.3~3.0kgf WITHDRAWAL FRCE : 0.3~3.0kgf OPERATING LIFE: 5000 CYCLES MIN SALT SPRAY: 24H OPERATING TEMPERATURE: -30℃~+80℃   They are suitable for the following scenarios: Industrial control equipment, such as PLC human-machine interfaces, CNC machine control panels, which need to withstand vibration and temperature shock to ensure signal stability. Embedded development and maintenance, audio debugging interfaces for Arduino, Raspberry Pi, e…
