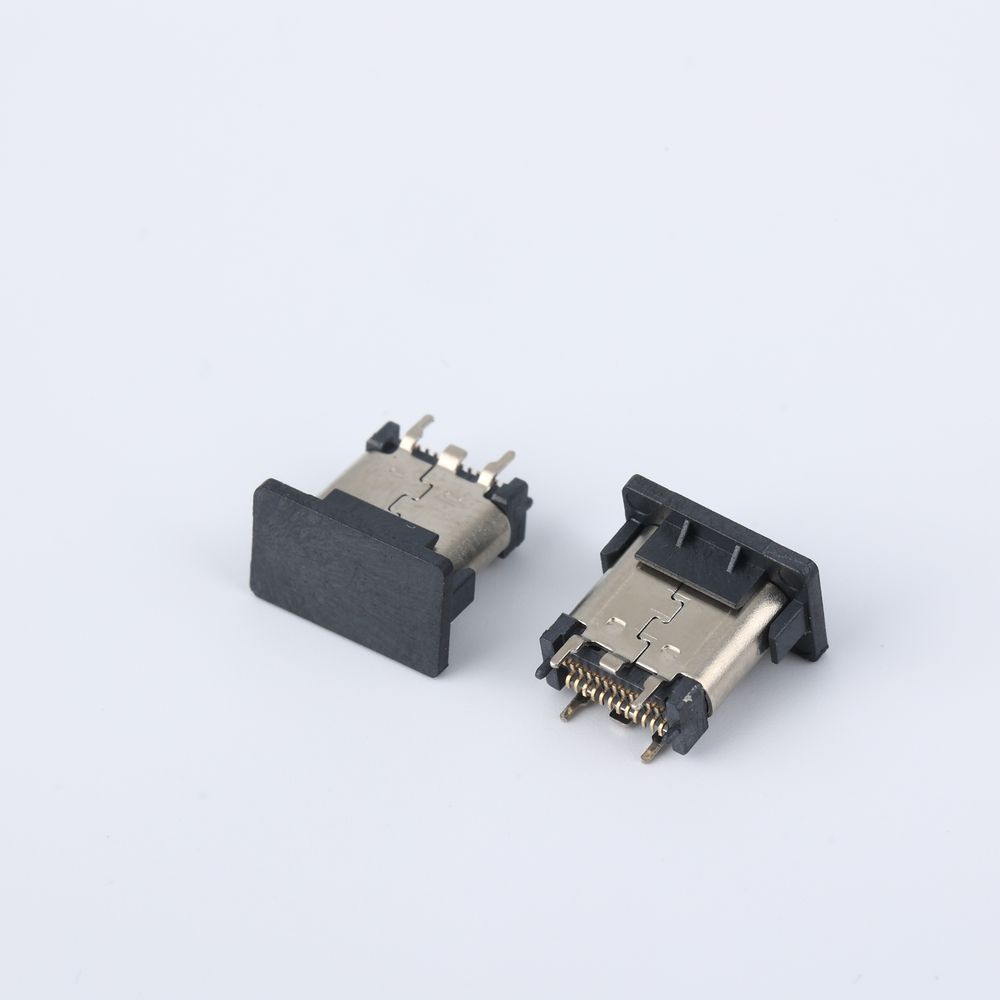

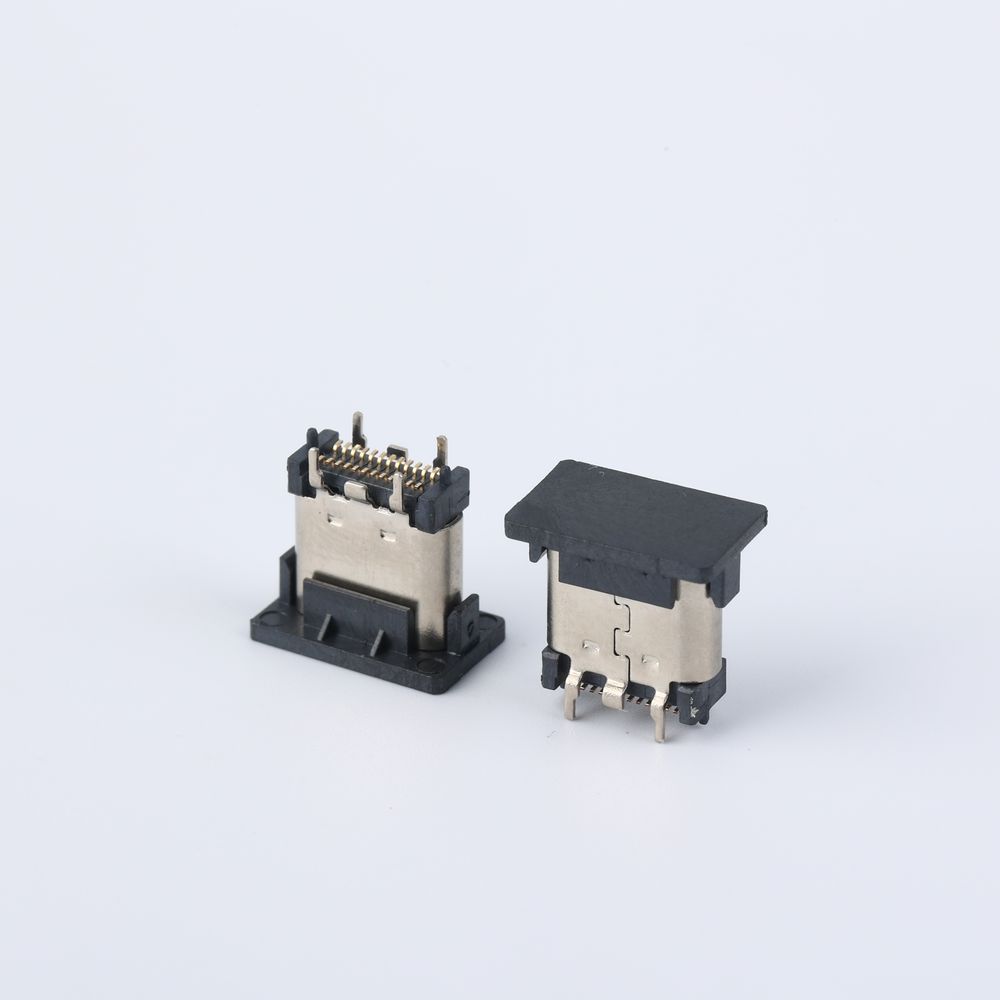

Type-C 24PIN SMT connector

The usb c connector upright 8.8 interface, the upright design saves space and is suitable for lightweight devices. The 24PIN Type-C connector is widely used in laptops, tablets, monitors and high-speed data transmission devices. It is suitable for compact electronic devices. It supports USB 3.2/Thunderbolt 3/4, featuring high density, bidirectional plugging and large current charging.   24PIN usb type c connector MATERIAL: MOLDING:  LCP UL94 V-0 CONTACT:  COPPER ALLOY                      PLATED GOLD ON CANTACT AREA                      G/F GOLD ON SOLDER AREA                      50u” NICKEL PLATING OVER ALL SHELL: SUS304-H, T=0.30±0.03mm50u”NICKEL PLATING OVER ALL   EMI SHILD: SUS304-H, T=0.12±0.03mm LATCH: SUS301-H, T=0.15±0.03mm MECHANICAL: INSERTION: 5~20N EXTRACTION: 8~20N DURABILITY: 10000 CYCLES ELECTRICAL:   CURRENT:   5A MAX FOR VBUS1.25A MAX FOR OTHER   VOLTAGE: 20VDC MAX WITHSTANDING VOLTAGE:  100V AC CONTACT RESISTANCE: 40m…
