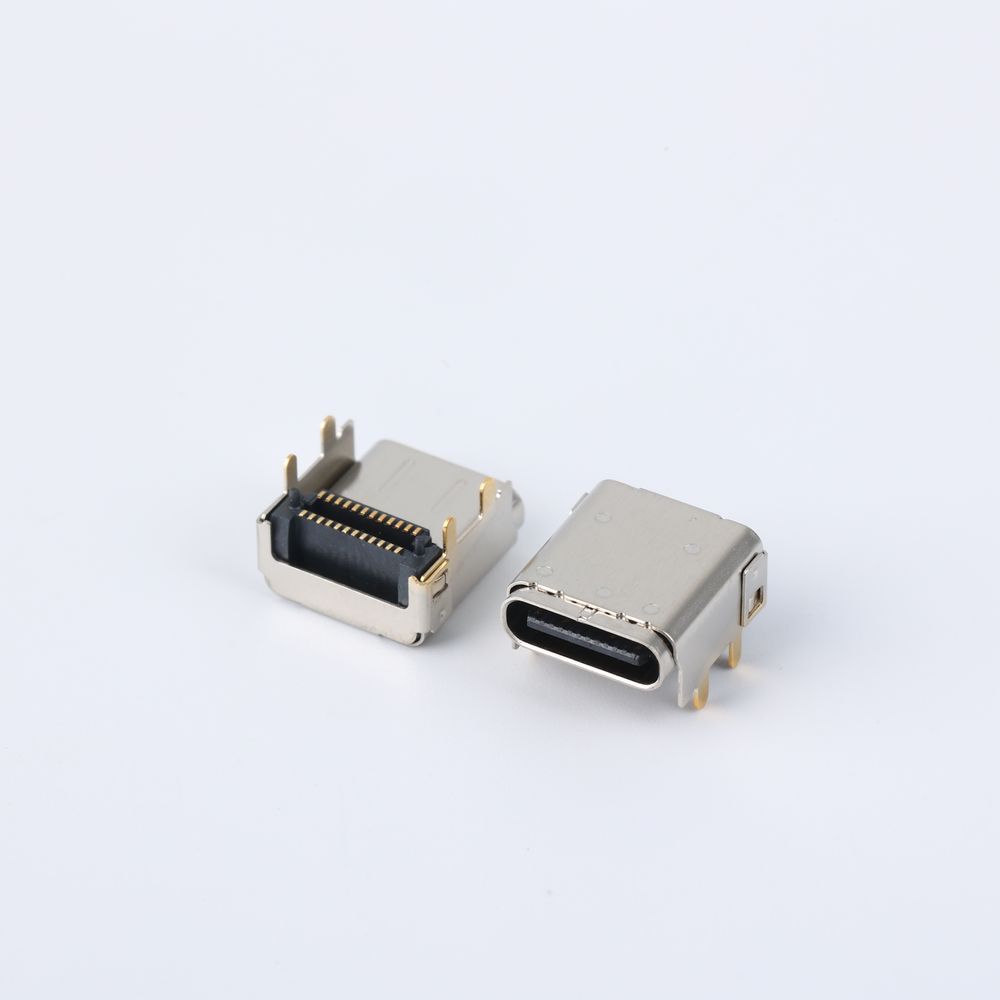

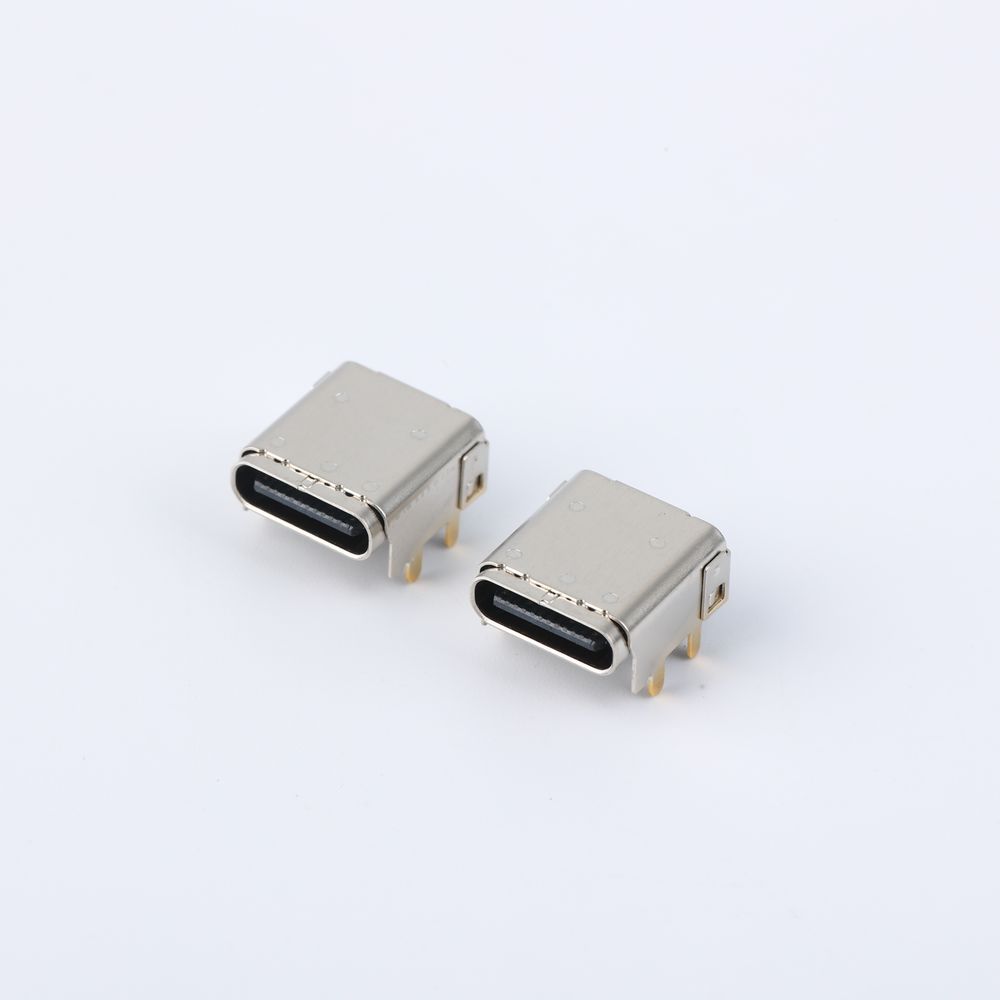

TYPE-C CH 3.4mm double SMT SHELL

The 24PIN type c connector is a new type of interface that supports high-speed data transmission and high-power power supply. It features a reversible insertion design and is compatible with USB 3.1/3.2 and PD fast charging protocols. With its 24-pin layout, usb c connector can achieve a data transmission rate of up to 10Gbps and a maximum power delivery of 100W.  24PIN usb type c connector MATERIAL: MOLDING:  LCP UL94 V-0 NLACK CONTACT: COPPER ALLOY 18400                      PLATED GOLD ON CANTACT AREA                      G/F GOLD ON SOLDER AREA                      50u” NICKEL PLATING OVER ALL OUTER SHELL:  SUS304, T=0.20±0.03mm               50u” NICKEL PLATING OVER ALL               G/F FOOT BRUSHING GOLD INNER SHELL: SUS304, T=0.3±0.03mm, 50u” NICKEL PLATING OVER ALL   LATCH: SUS301, T=0.15±0.03mm MECHANICAL: INSERTION:  5~20N EXTRACTION: 8~20N DURABILITY: 10000 CYCLES ELECTRICAL: CURRENT: 5A MAX FOR VBUS1.25A FOR GND, 025A…
