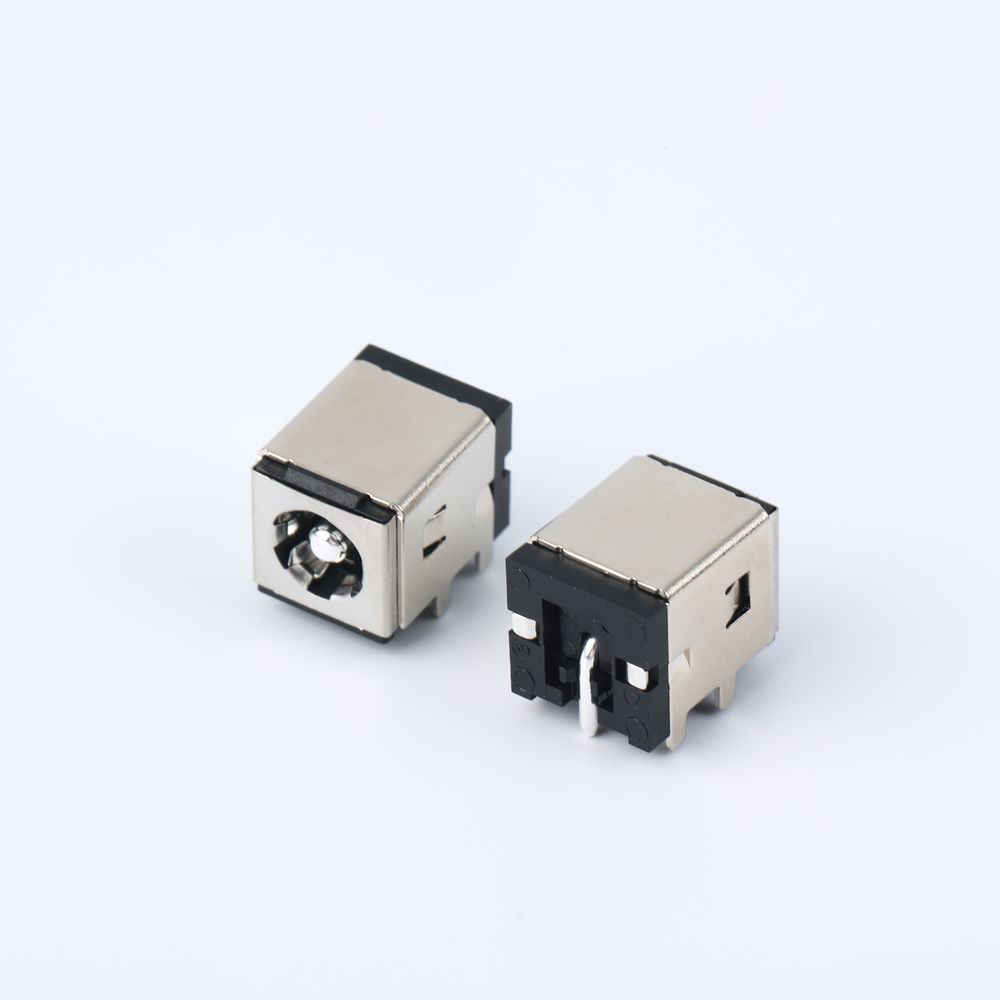

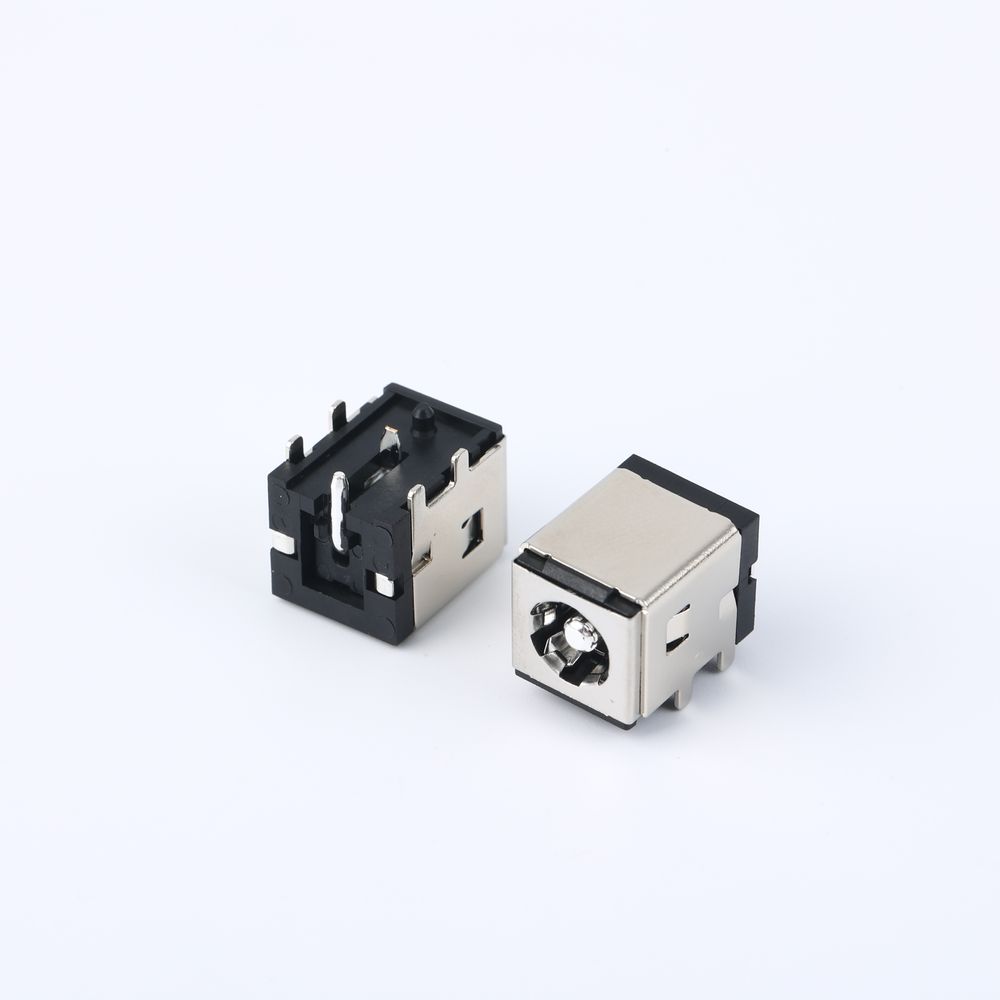

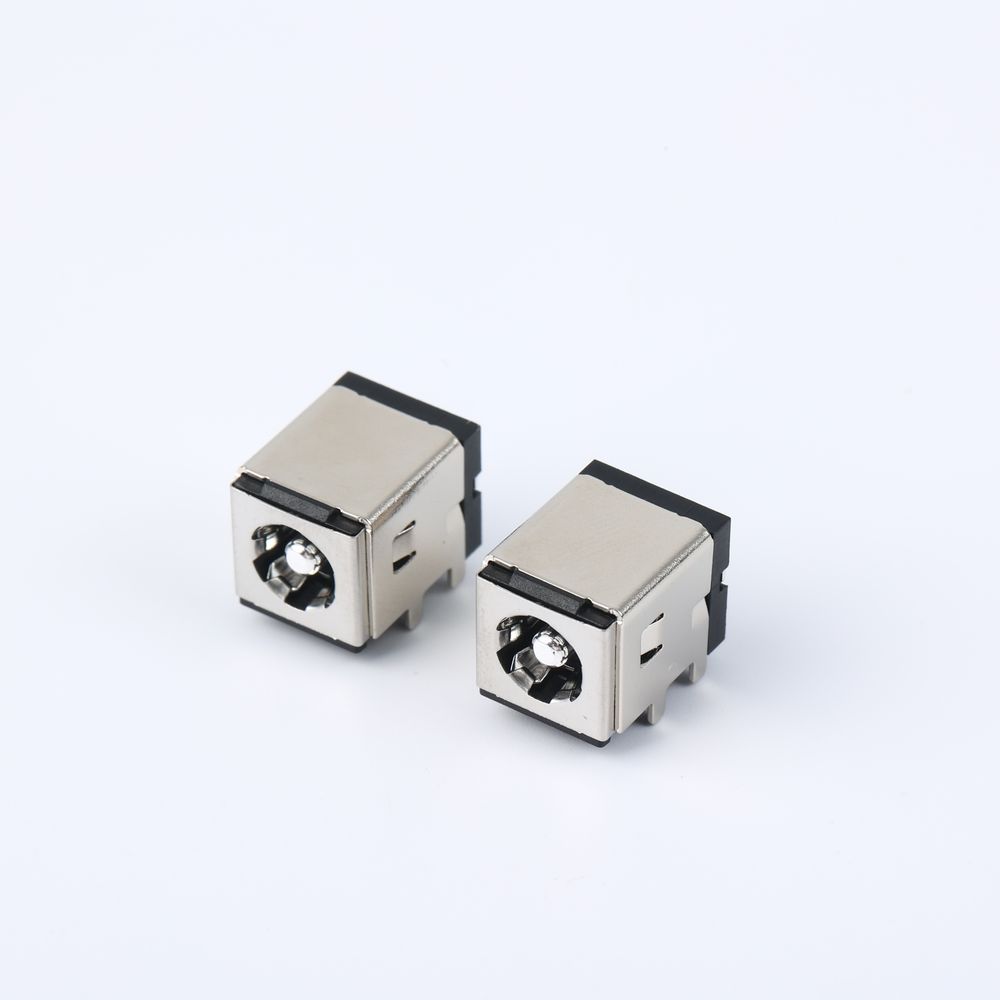

DC power Jack Connector

DC Jack connector, the 90-degree DIP plugboard housing on the DC power jack board has welded feet to enhance its stability. The 12V 13A high current  DC connector is specifically designed for high-power electronic devices and features excellent electrical performance and mechanical strength.   Material： HOUSING:  PA9T UL94-0 HALOGEN-FREE, BLACK SPRING: PHOSPHOR BROZEN T=0.3mm, 60U'' MIN SN ON CONTACT AREA, 60U'' MIN CU ON SOLDER, 60U'' NI PIN: BRASS, 20U'' MIN AG ON CONTACT AREA, 60U'' MIN CU ON SOLDER, 60U'' NI STOPPER: PA9T UL94-0 HALOGEN-FREE, BLACK SHELL: SPCC-SD T=0.4mm, 60U'' NI PLATED GROUND: STAILESS T=0.15mm RATING CURRENT: 20V 13A CONTCAT RESISTANCE: NOT EXCEED 30mΩ MAX DIELECTRIC WITHSTANDING VOLTAGE: 250V AC INSULATON RESISTANCE: 100mΩ MIN BY 500VOLTS MEGGER INSERTION FORCE : 3.0KGF MAX WITHDRAWAL FORCE: 1.0~3.0KGF MIN OPERATING TEMPERATURE RANGE: 5~85℃ PACKAGING: TRAY/REEL 90-degree DIP plugboard design, the right-angle installation…
