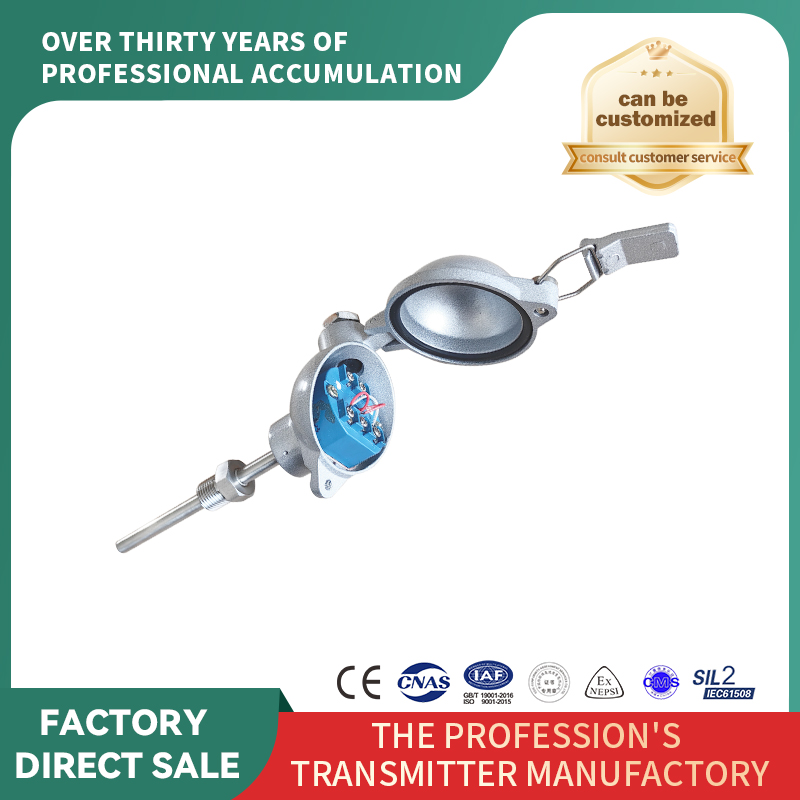

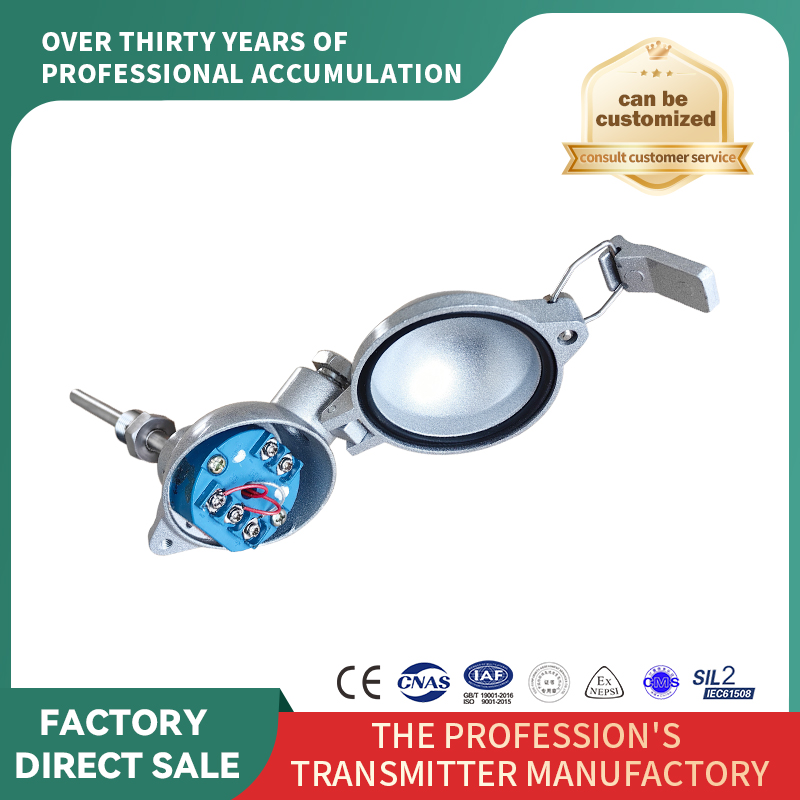

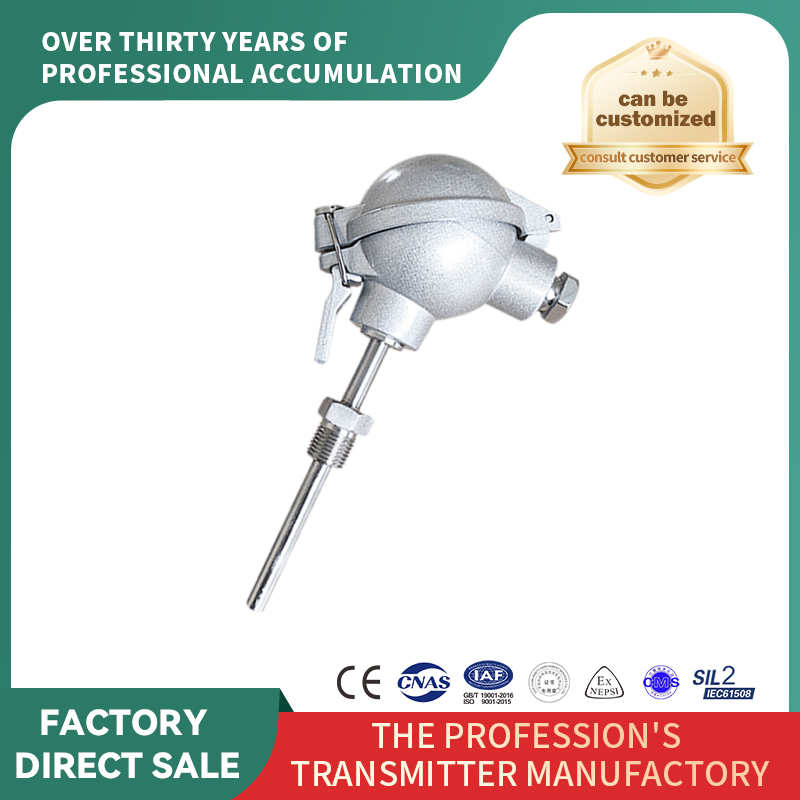

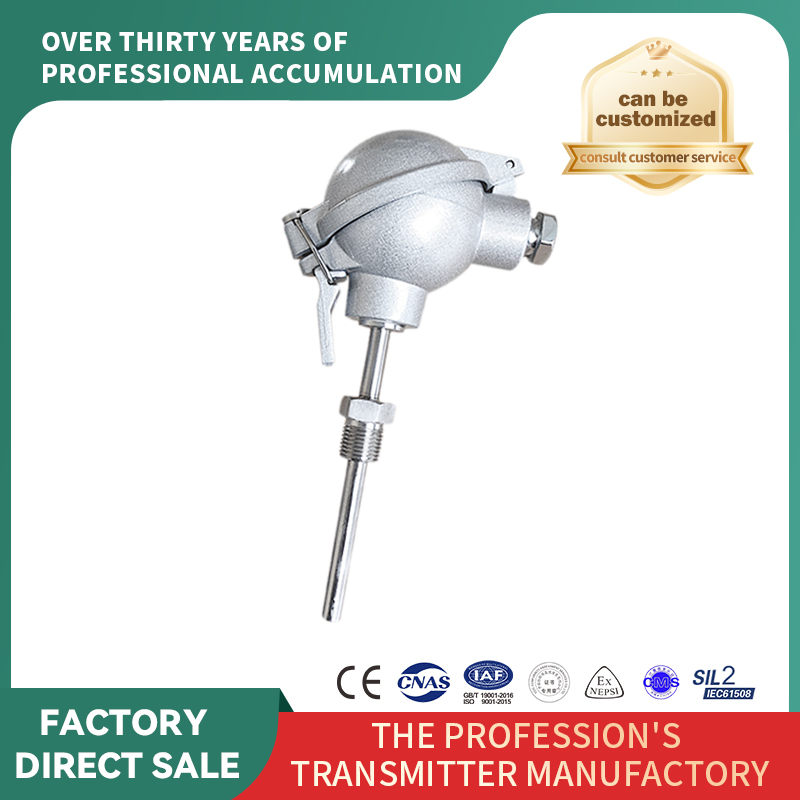

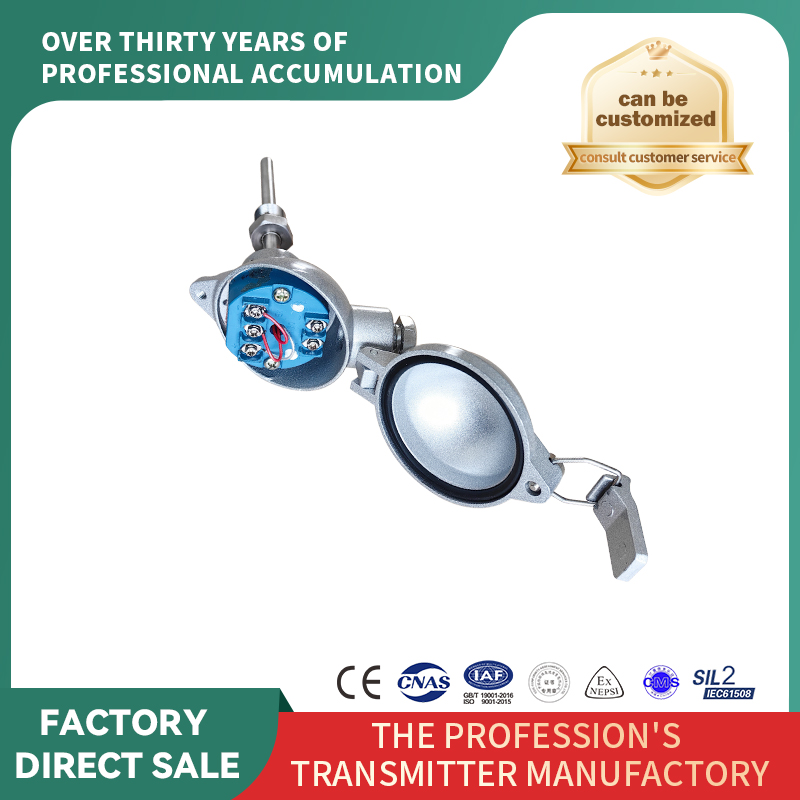

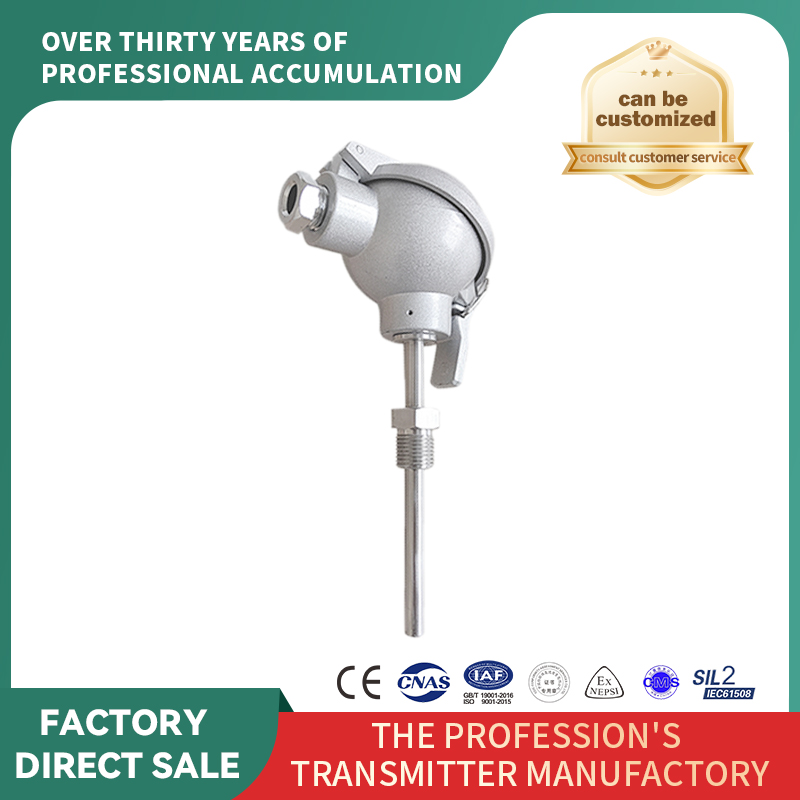

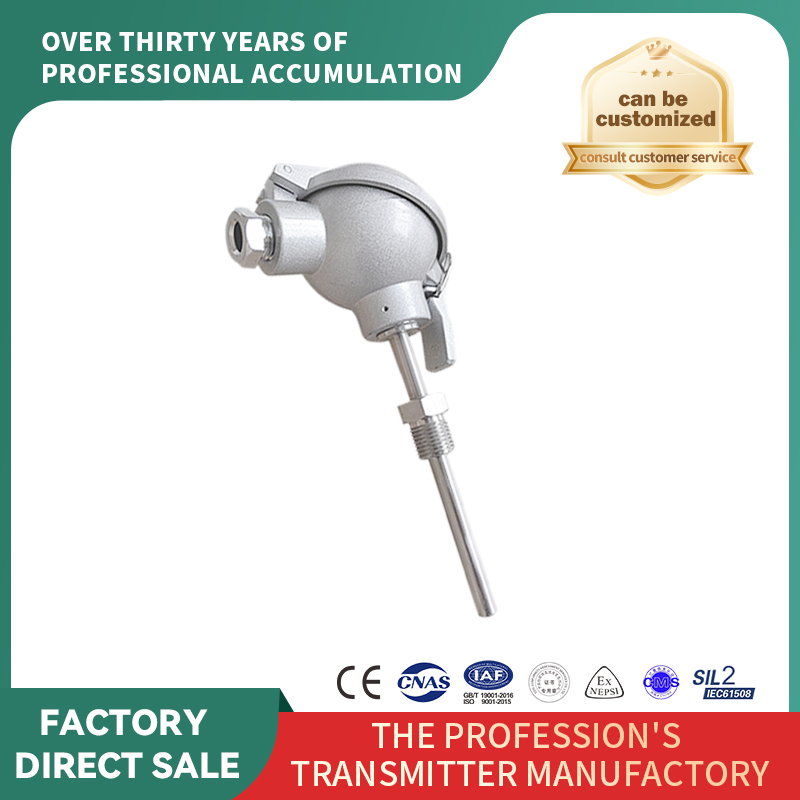

Customizable snap-on type thermocouple sensor

  Product Description Nominal resistance value (Ro) at 0°C and temperature measurement tolerance (see table below):   Model No. Graduated number Nominal resistance value at 0°C R (0°C) (Ω) Resistance RatioR100/R(0ºC) Temperature Measurement Range, Accuracy Grade and Tolerance Temperature Measurement Range (ºC) Accuracy Class and Tolerance WZP PT10 10 1.3850 Ceramic element: -200~+600Glass element: -200~+500Mica components: -100~+420 Grade A:±(0.15+0.2% |t|)Grade B:±(0.3+0.5% |t|) PT100 100 WZC Cu10 50.00 ±0.05 1.4280±0.0020 -50~+100 ±(0.30+0.006 |t|) Cu100 100.00 ±0.10 Remarks Cu100 copper RTDs and PT10 resistors need to be supplied by agreement. Note: |t| is the absolute value of the measured temperature.       Product Features Temperature sensor internal armored structure, can improve the temperature sensor anti-vibration and shock performance, to extend the service life of the sensor.Temperature sensor protection has dozens of materials to meet the diff…
