Temperature transmitter module is small in size

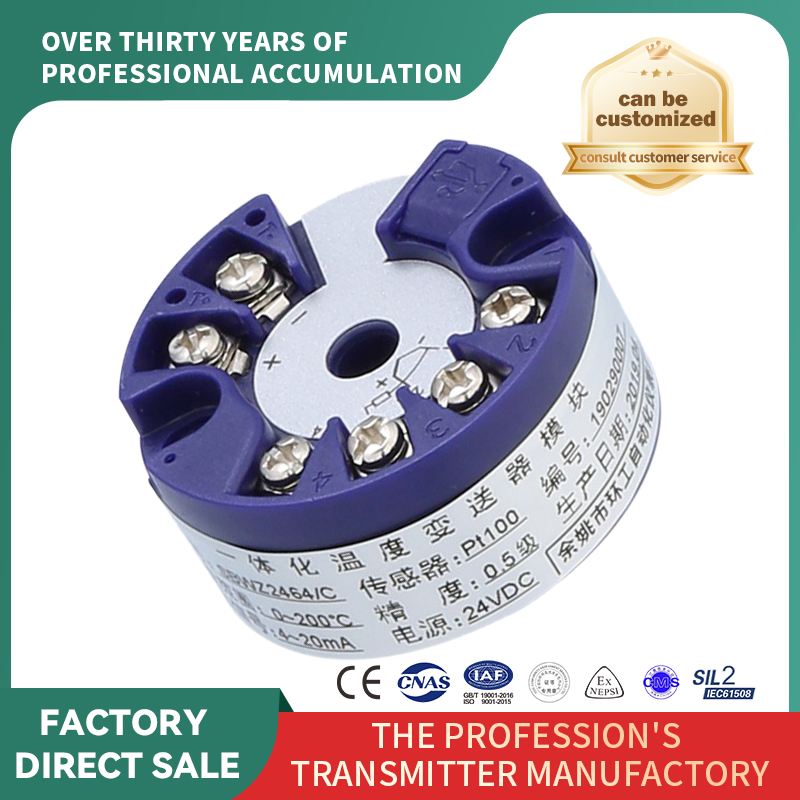

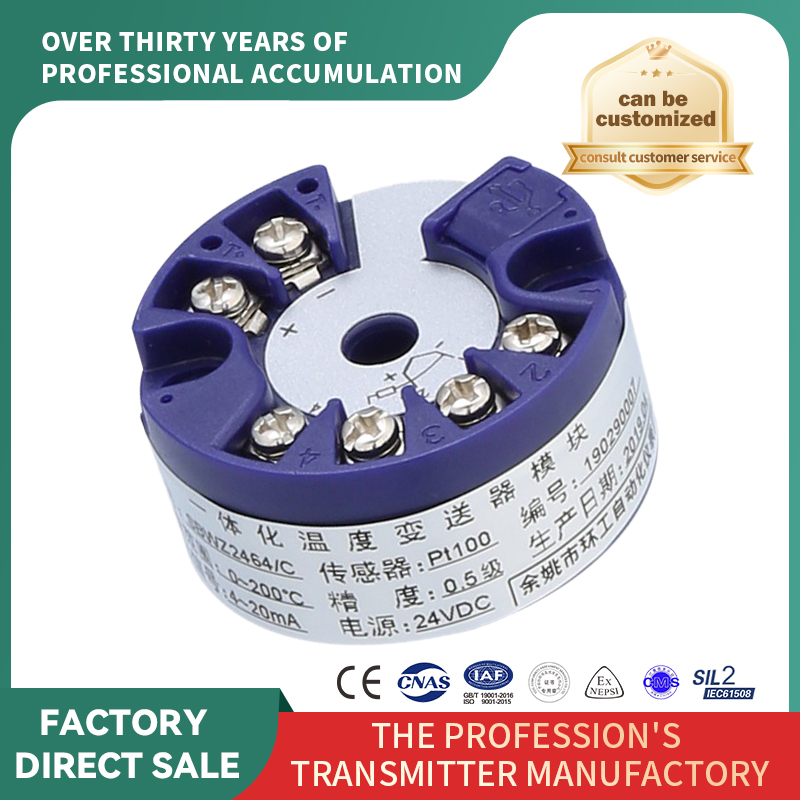

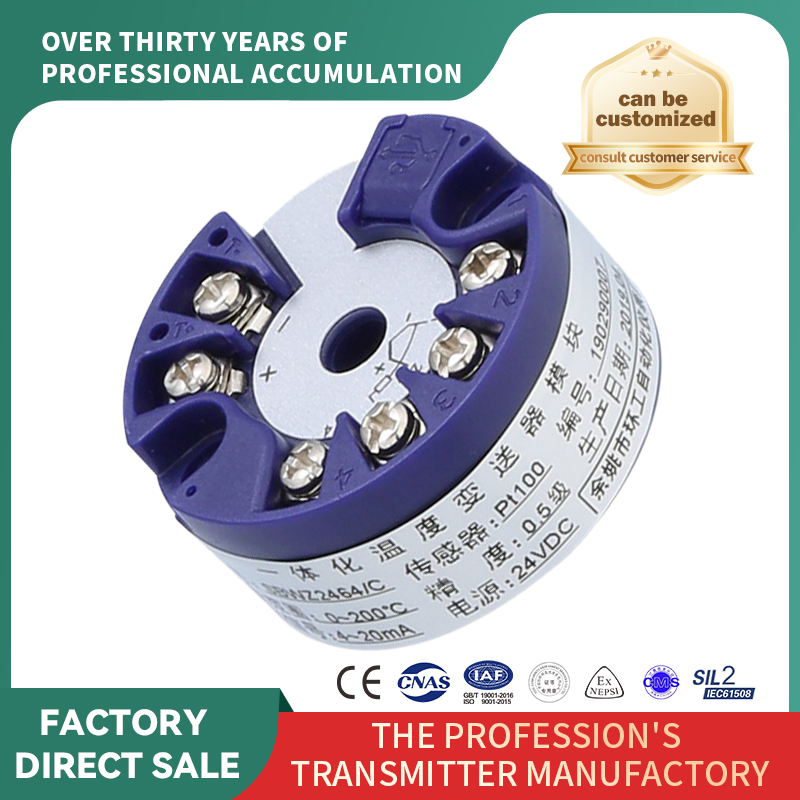

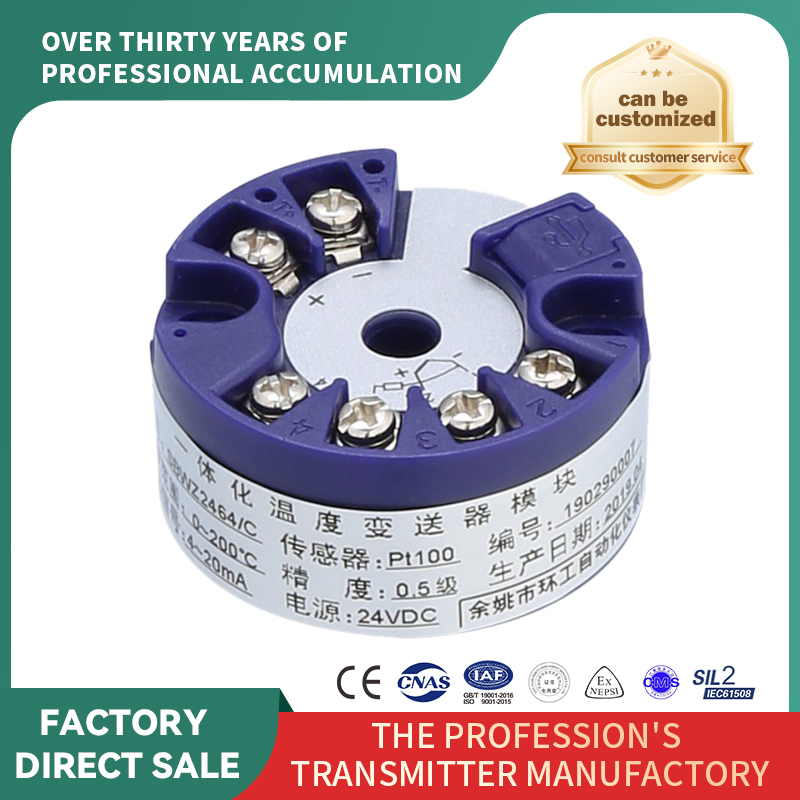

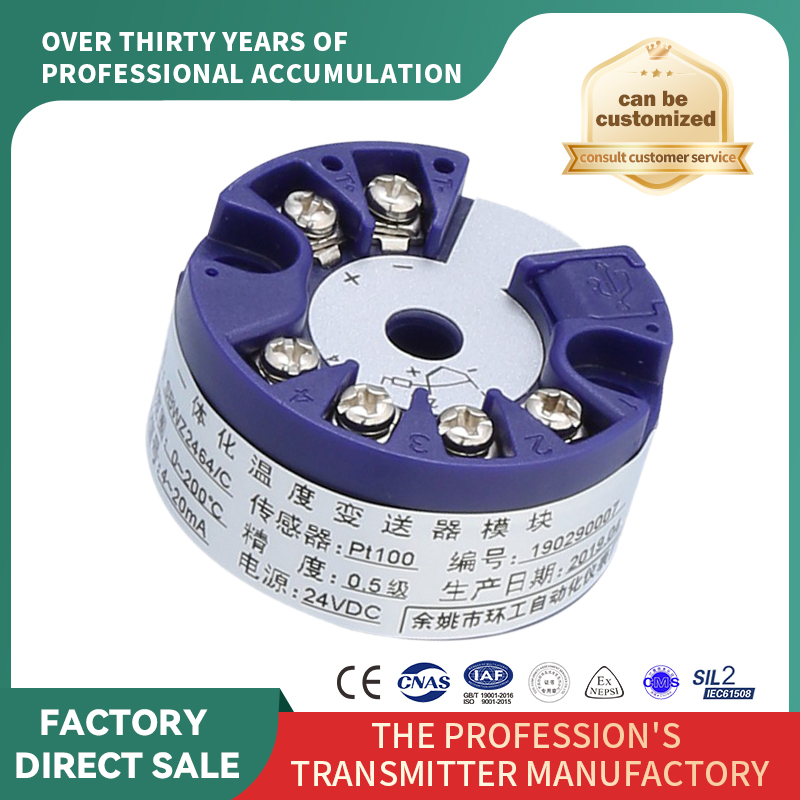

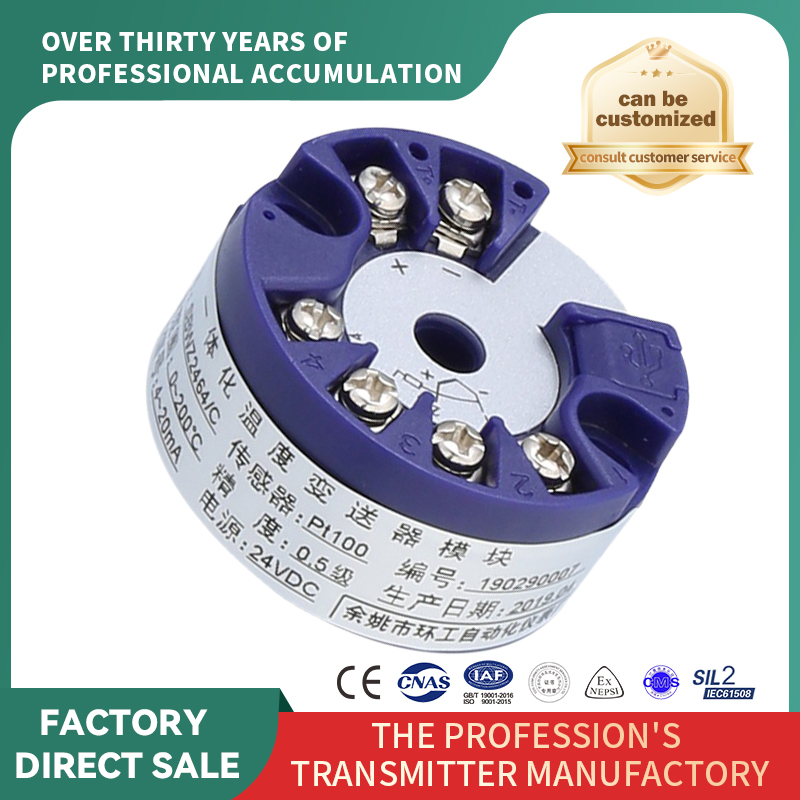

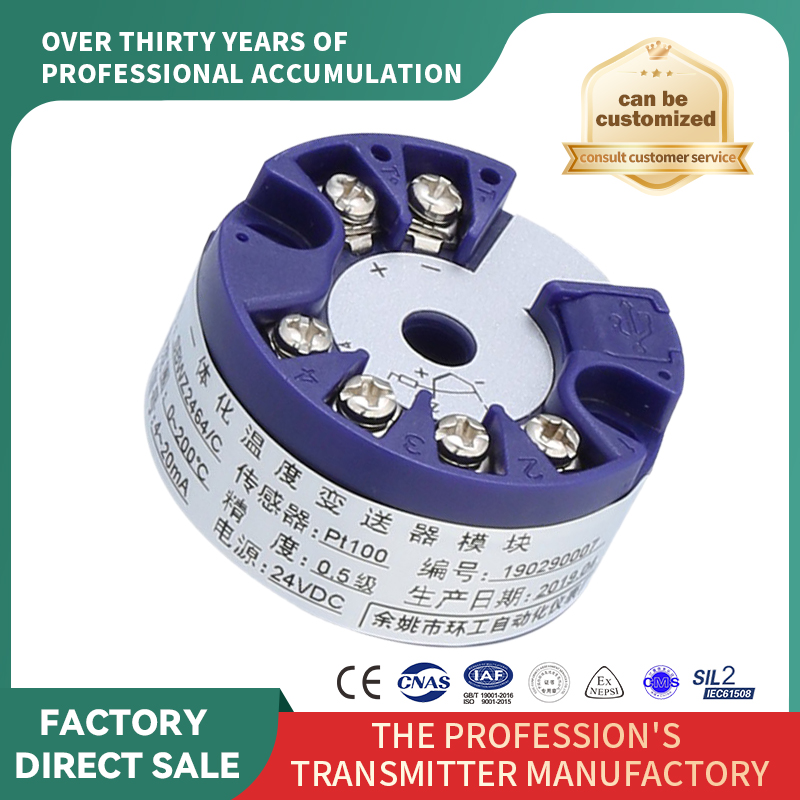

  Product Description   SBWZ/R series integrated temperature transmitter module is a field installation type temperature transmission unit. It adopts two-wire transmission mode (power input and signal output are two common wires), and outputs 4~20mA current which is linear with the measured temperature.The transmitter module can be installed in the thermocouple, RTD junction box with the formation of an integrated structure, can also be installed in the instrument panel as a separate conversion unit. Technical Parameter   Accuracy ±0.1%F·S   ±0.2%F·S   ±0.5%F·S Output 4…20mA Stability ±0.5%F·S for 1 year Load resistance 0…600Ω Power supply 12 to 36VDC Ambient temp -25ºC…85ºC Storage temp -45ºC…125ºC Response time ≤10mS Power consume <0.5W (24VDC) Input RTD/TC/mV RTD Pt100 Pt500,Pt1000,2-,3- wires2xPt100,2xPt500,2xPt1000,2-,3- wires (such as pic7 )     TC:K,J,T,E,M,S,B,R Internal cold junction for TC The range can be customized Galvanic isolatio…
