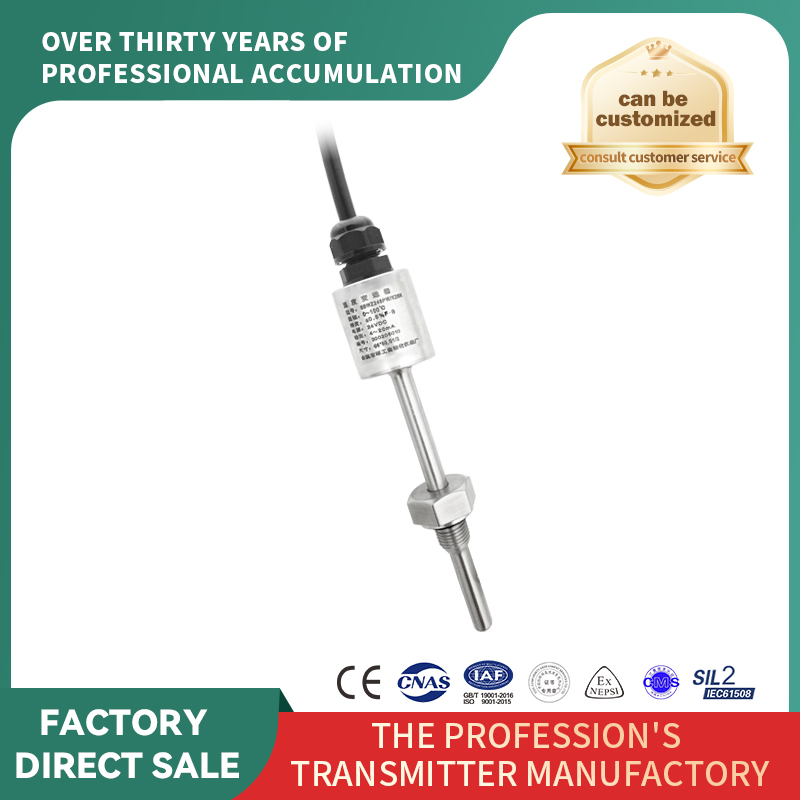

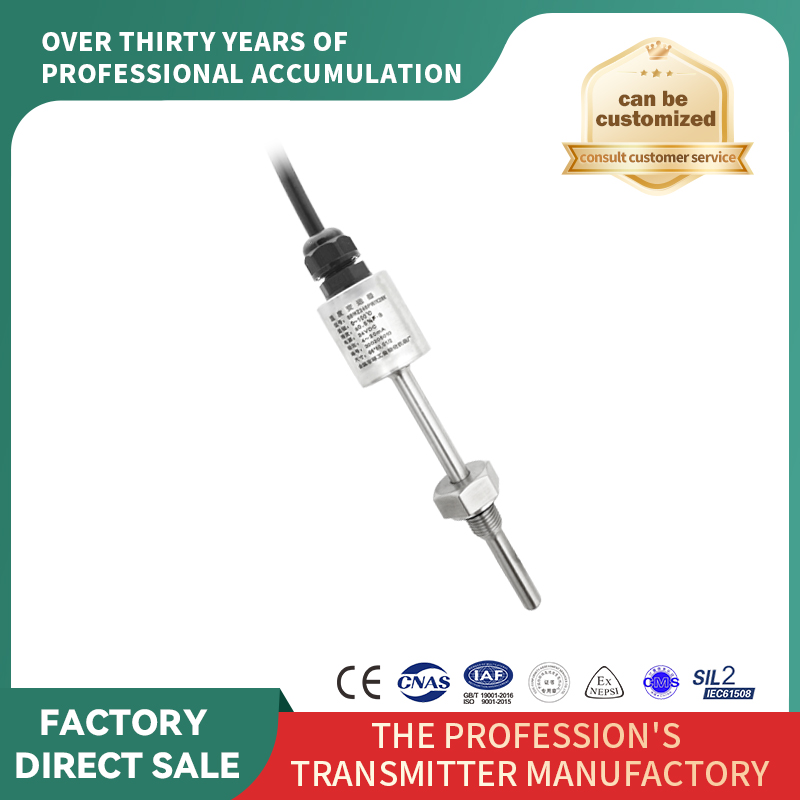

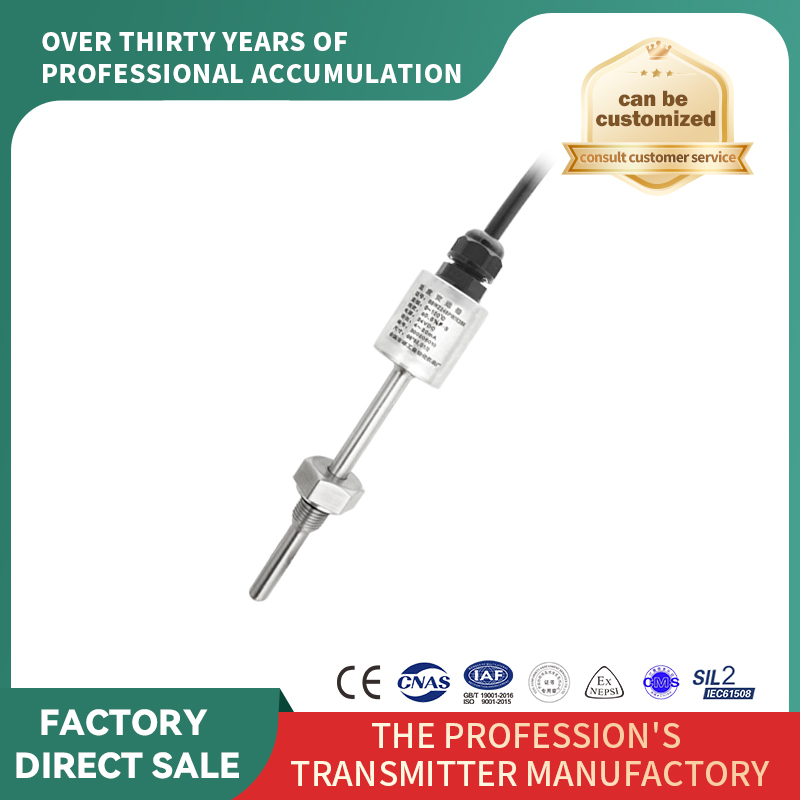

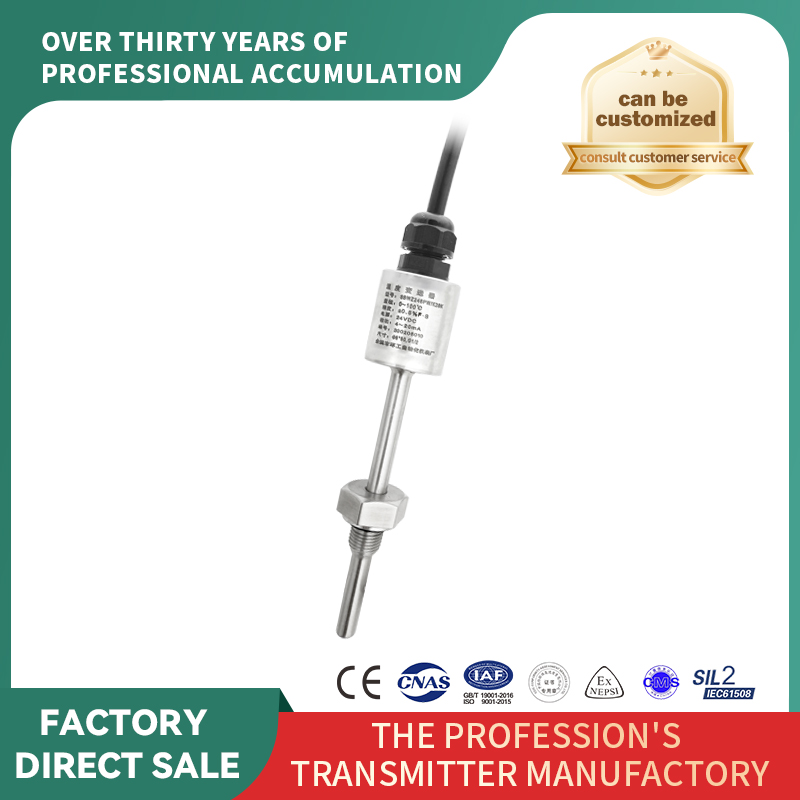

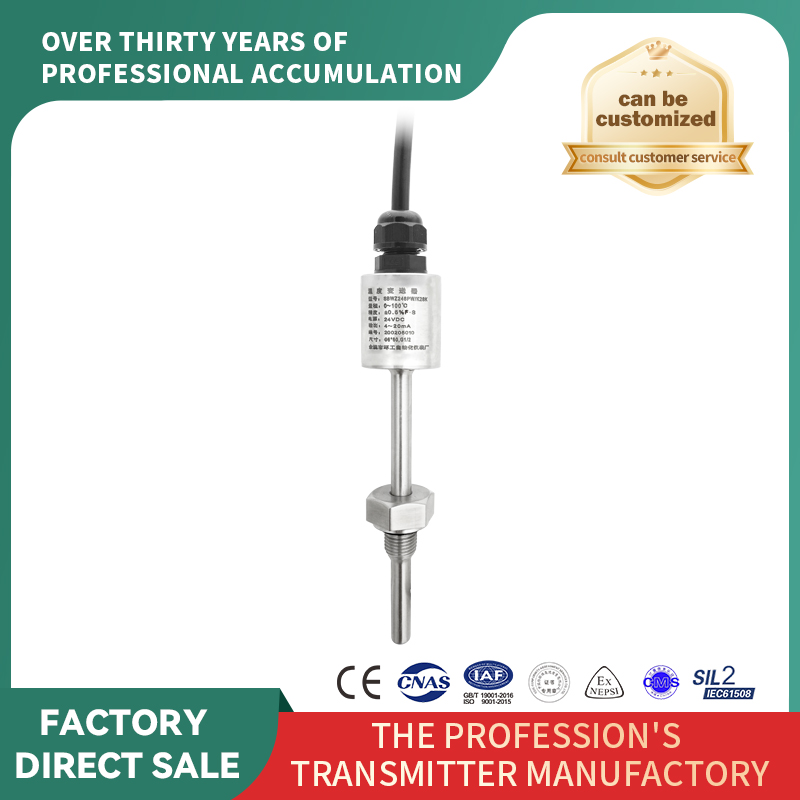

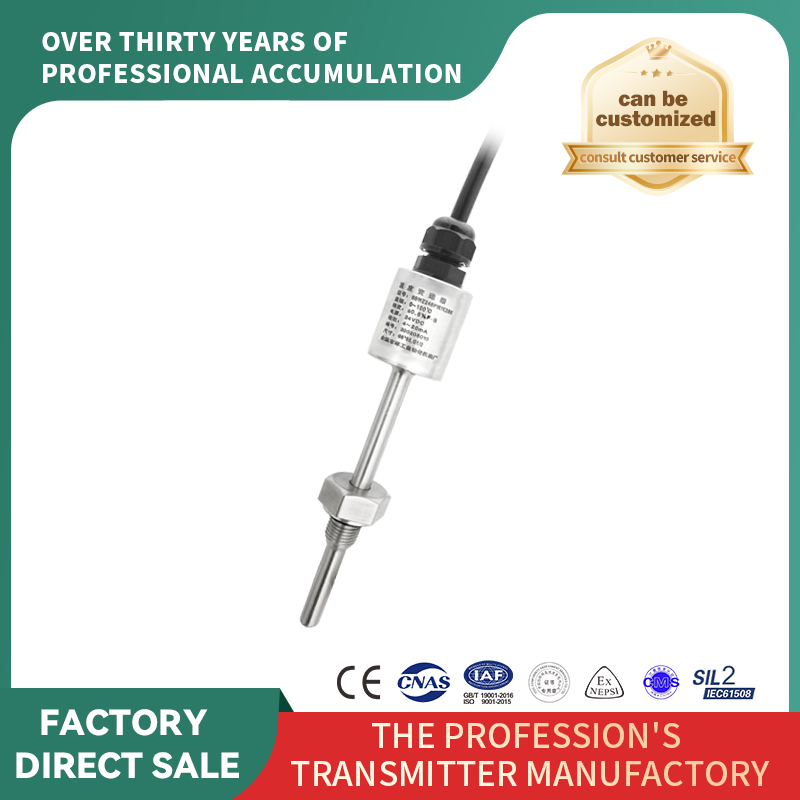

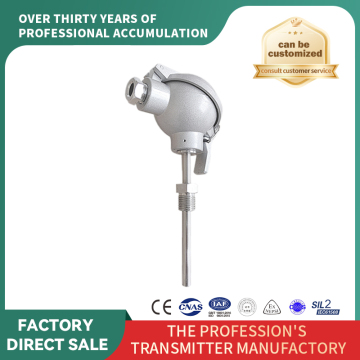

Lead type temperature transmitter

  Product Description The SBWZ/R Thermocouple (resistance) integrated temperature transmitter is a field mounted temperature transmitter unit in the DDZ-S series of instruments. It is composed of thermocouple, thermal resistance and temperature transmitter module, adopts two-wire system, with nonlinear correction circuit, can directly measure the temperature of liquid, gas medium and various substances in the range of -200ºC~+1600ºC in the industrial process, and convert the temperature signal into a linear 4~20mADC current output signal with the temperature signal. Send display, adjust recording instrument or computer for distributed control. Technical Parameter   Accuracy  ±0.2%F·S, ±0.5%F·S(including linearity,hysteresis and repeatability) Output (2 wires)  4…20mA Power supply 12…36VDC (or 24VDC) Ambient temp -25…85ºC Storage temp -45…125ºC Humidity 5…95% Accuracy of the indicator: ±2.5%(100% scale)   ±1.0%(LED)  ±1.0%(LCD) Power consume <0.5W (24VDC)…
