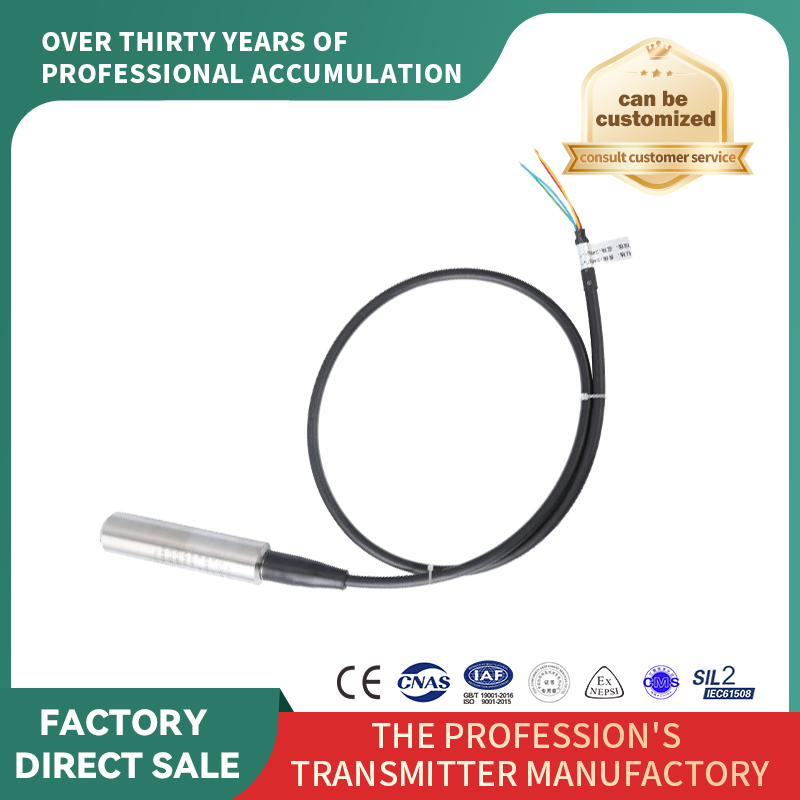

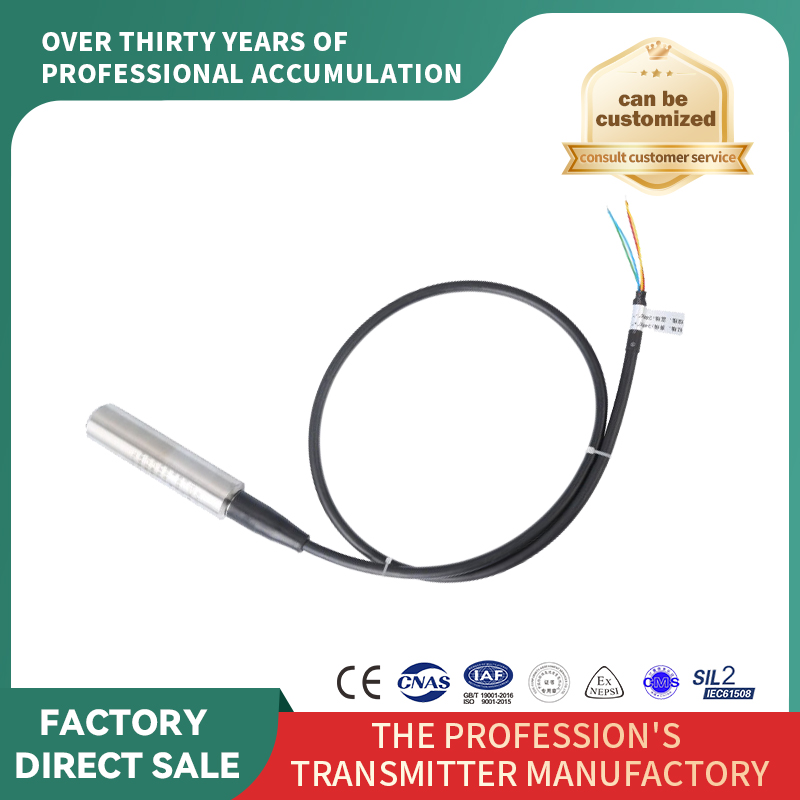

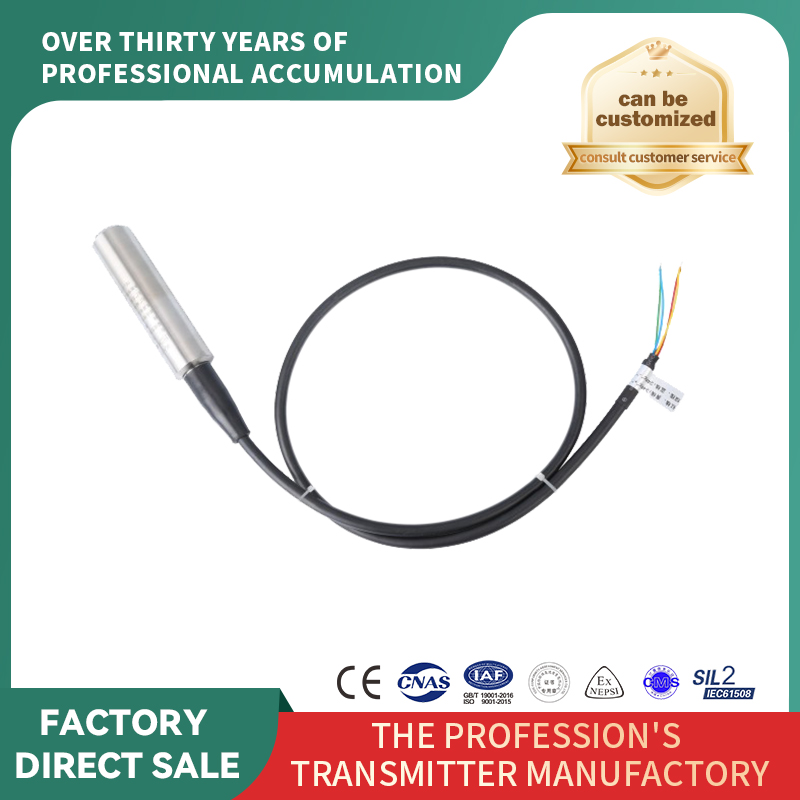

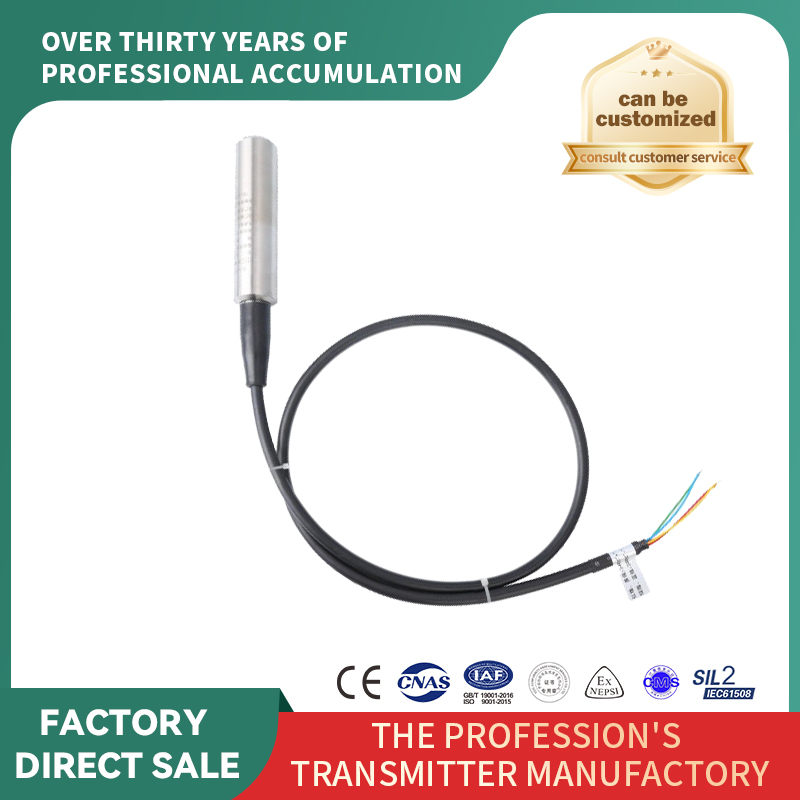

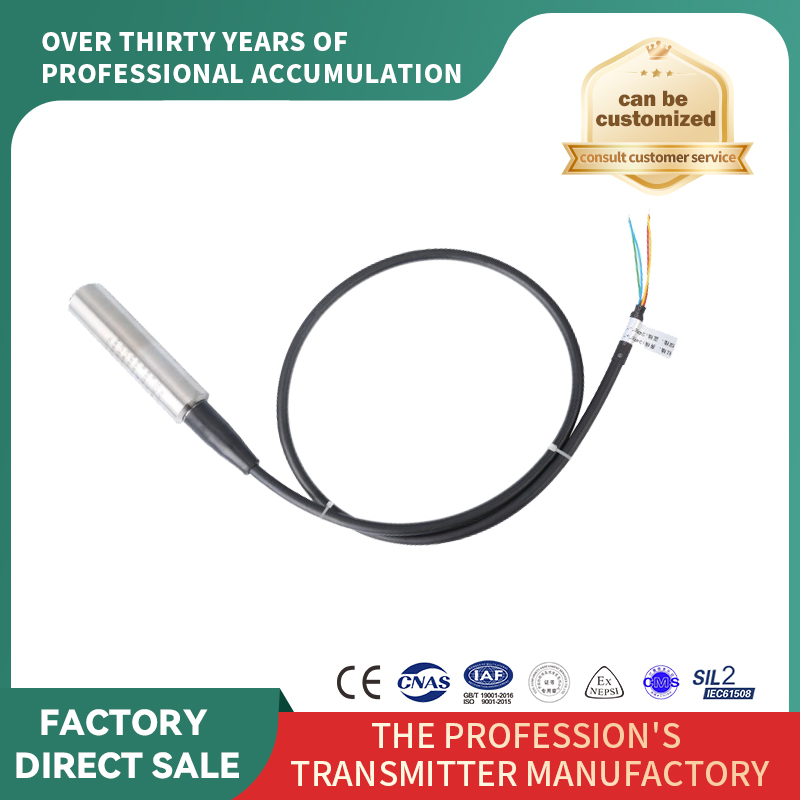

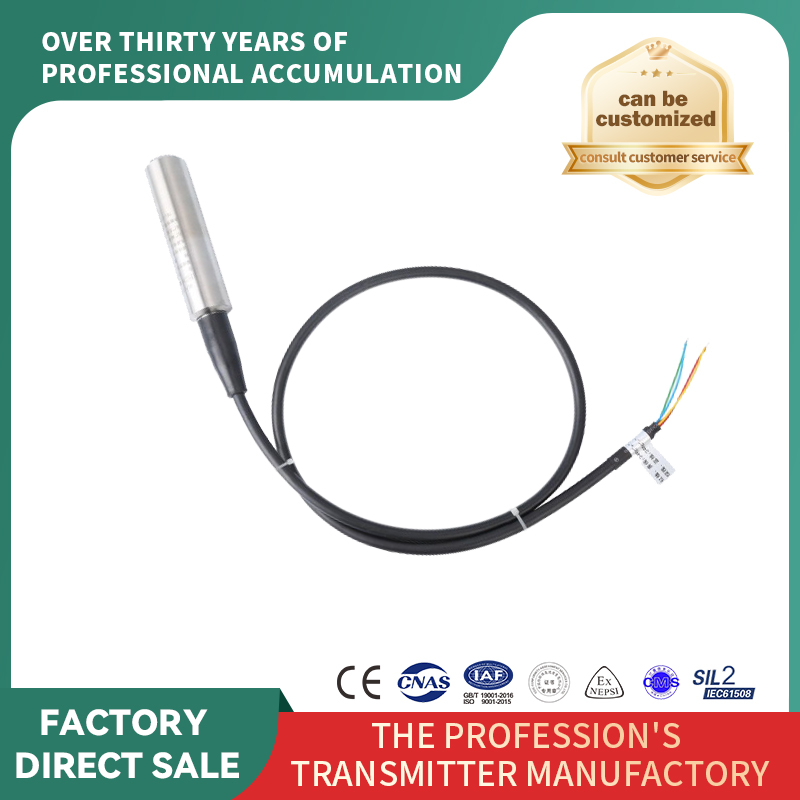

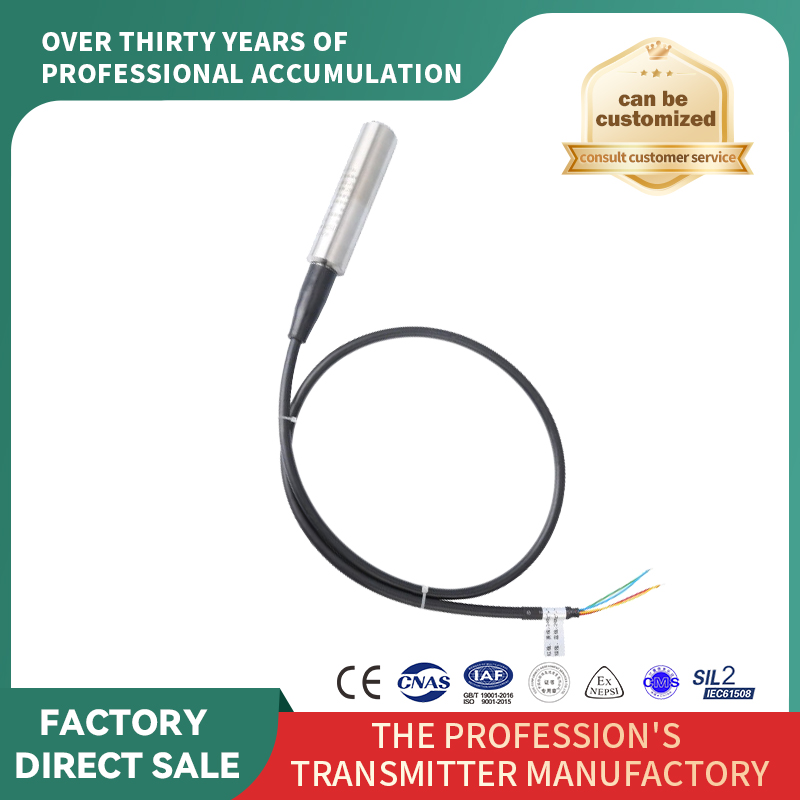

Submersible liquid level transmitter has good performance

  Product Description PB8600 series input hydrostatic liquid level transmitter is composed of sensor, air-conducting cable, stainless steel cylinder and so on. It tests the liquid level height by measuring the pressure at the position where the sensor is located, and converts the liquid level height into a standard electrical signal output. Stable performance, good reliability, long service life, internal circuit design in line with the requirements of intrinsic safety and explosion-proof, its excellent performance, can completely replace the imported input (or submerged) static liquid level transmitter, mainly used for measuring the height or depth of the liquid level of water, oil and so on. Technical Parameter   Accuracy 0.5%F·S Measuring range 0…5m to 0…1500m Linearity superior to 0.2%F·S Temperature drift   Stability superior to 0.5%F·S for 1 year Response time ≤10mS Power supply 12 to 36VDC Output 4…20mADC Load resistance 0 ~600Ω Liquid  temp -10…60…
