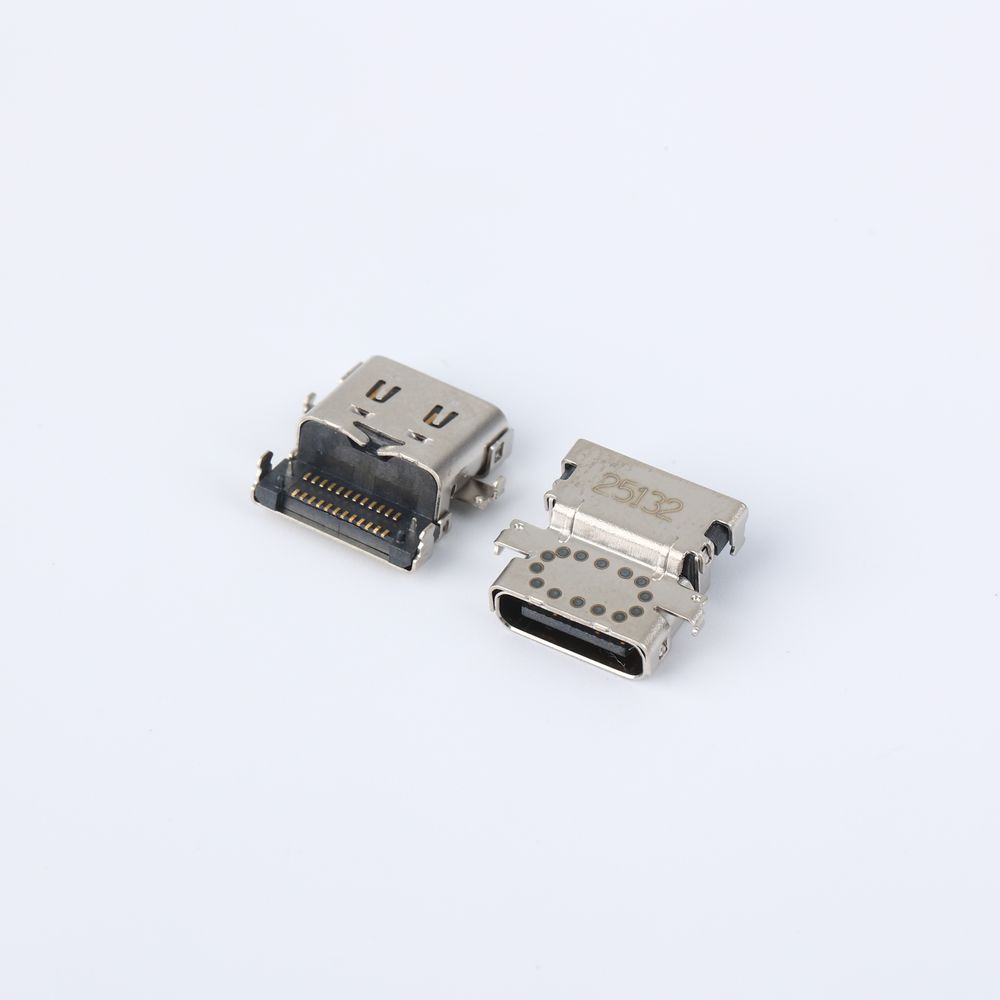

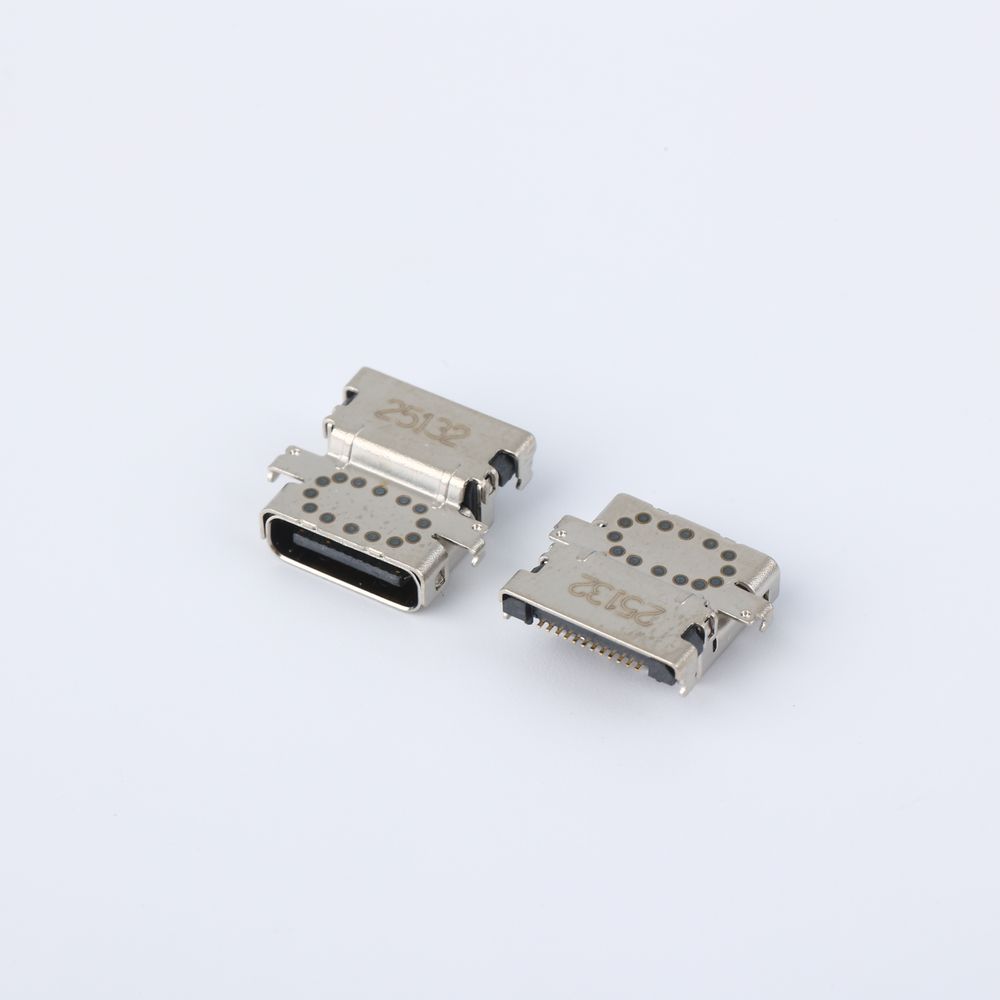

USB 4 GEN3 TYPE C 24PIN

The usb c connector recessed dual SMT sockets are a high-performance and highly reliable electronic component, widely used in mobile phones, laptops, tablets and other devices. They are mainly used for efficient connection and signal transmission, space saving and improvement of integration, stability and durability. It complies with the latest high-speed interface standard of TBT5 (Thunderbolt 5), with a transmission rate of up to 80 Gbps, supporting bidirectional data transmission, video output and power supply. The Type-C connector 24-pin interface achieves the TBT5 protocol through the reuse of high-speed signal lines (Tx/Rx) and configuration channels (CC).   24PIN usb type c connector MATERIAL: HOUSING:  LCP E6808UHF+40%GF[UL94 V-0] BLACK CONTACT:  COPPER ALLOY(C18400), Ni 50u” MIN. UNDER PLATED OVER ALL Ni 50u” MIN. UNDER PLATED OVER ALL  GOLD PLATING 3050u” MIN ON CONTACT AREA   G/F PLATING ON SOLDER AREA OUT SHELL: SUS304 3/4H,  Ni 50u” MIN. PLATING ON SOLDER A…
